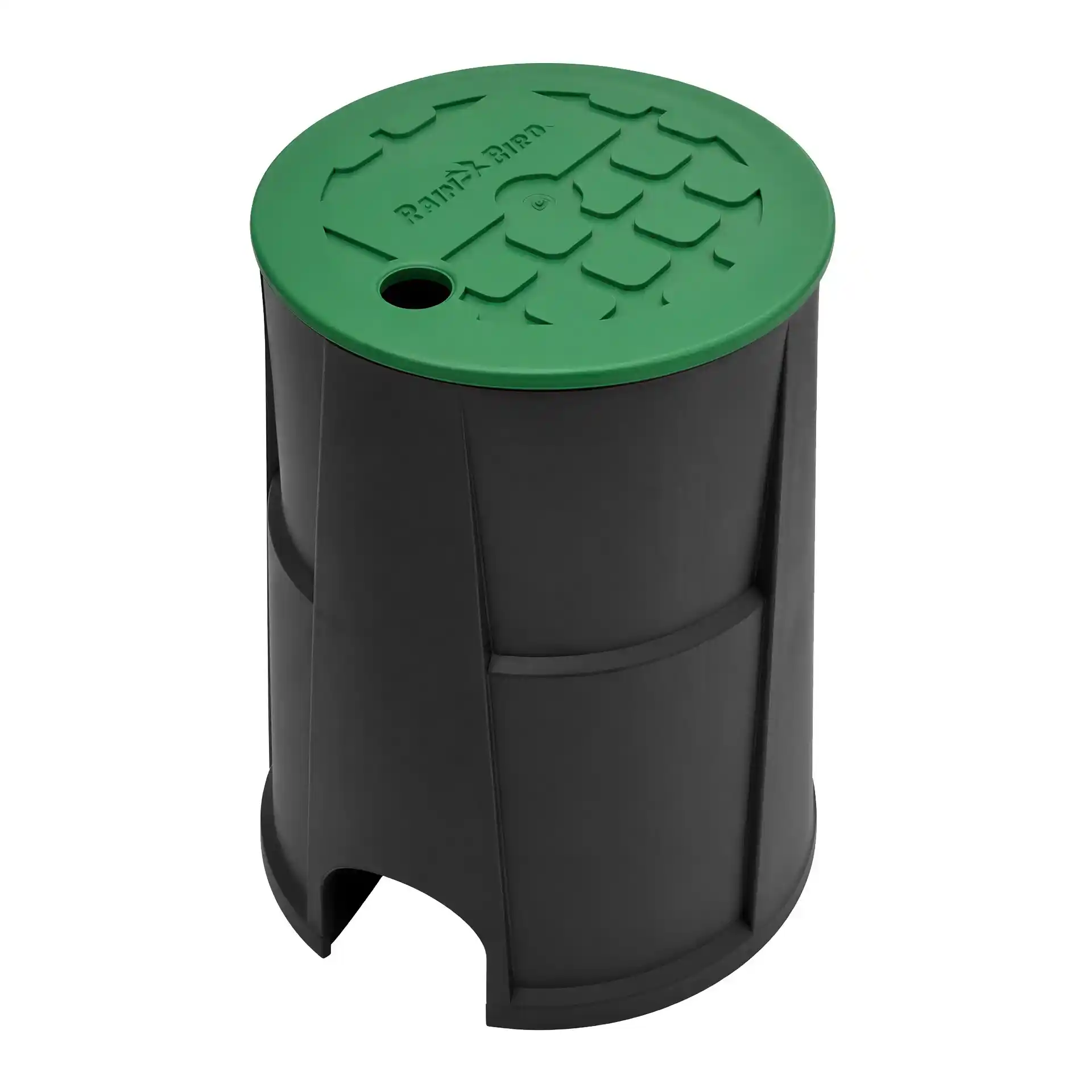

Rain Bird VBA02672 round valve box with green bayonet lid - 7"

Rain Bird VBA02672 round valve box with green lid

The Rain Bird VBA02672 is a compact round valve box with a green bayonet-type lid, designed for underground installation of irrigation components. It is particularly suitable for small garden irrigation systems, individual irrigation valves, manual shut-off valves and pipe connections. Its space-saving design allows discreet installation in lawns, flower beds and landscaped areas.

The black housing helps protect installed components from soil and debris, while the green lid blends naturally into the surrounding landscape. With a bottom diameter of 20 cm and an overall height of 23.65 cm, the valve box provides a practical enclosure for smaller irrigation installations.

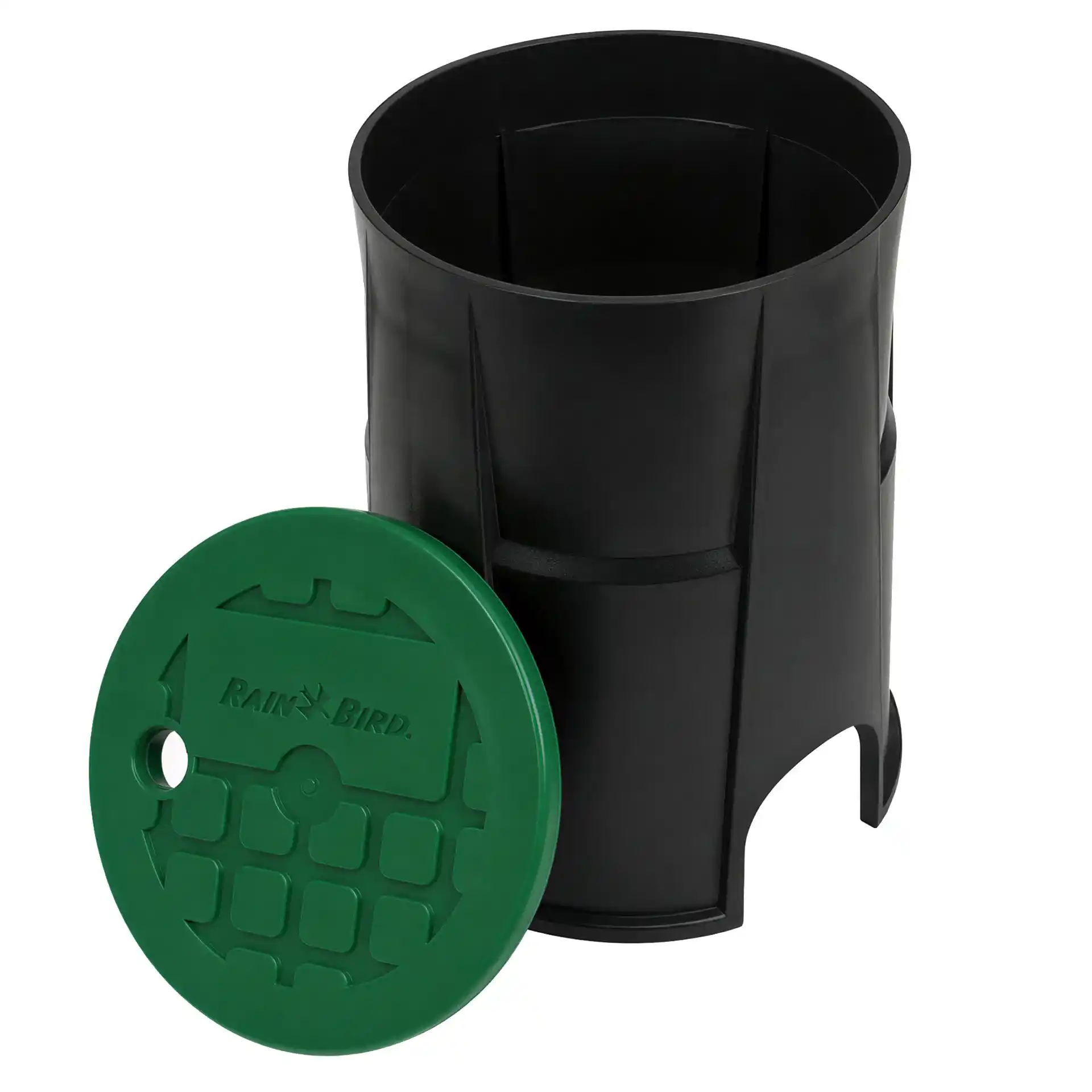

Green bayonet lid for secure closure

The Rain Bird VBA02672 features a green bayonet-type lid that is secured and released by twisting. This practical closure keeps the lid firmly positioned while allowing convenient access to the irrigation components installed below ground level.

An integrated opening and notch allow the lid to be lifted using a compatible Rain Bird 2-in-1 lifting key. The model number and Rain Bird branding are molded into the housing for easy identification during future maintenance.

Durable polypropylene construction for underground installation

Both the black housing and green lid are manufactured from polypropylene, a durable plastic suitable for outdoor applications. The lightweight construction simplifies handling and installation. Its tapered shape also allows multiple valve boxes to be nested together for space-saving transport and storage.

The valve box features pre-cut pipe inlet and outlet openings that can be opened without additional tools. Measuring 6.7 cm wide and 6.4 cm high, these openings provide convenient access for compatible irrigation pipes and simplify installation.

Practical valve box for smaller irrigation systems

The Rain Bird VBA02672 is suitable for residential gardens, smaller lawn areas and irrigation installations where individual valves or pipe connections need to remain protected and accessible. Its round design requires less installation space than larger rectangular valve boxes.

During installation, ensure that the lid remains accessible and that sufficient space is available around the installed components. This makes it easier to inspect valves, check connections and carry out maintenance without excavating the entire installation.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: VBA02672
• Product type: Round valve box
• Nominal size: 7 inches
• Housing color: Black
• Lid color: Green
• Lid closure: Bayonet-type locking mechanism
• Material: Polypropylene
• Top diameter: 16.0 cm
• Bottom diameter: 20.0 cm
• Overall height: 23.65 cm
• Pipe opening width: 6.7 cm
• Pipe opening height: 6.4 cm
• Pre-cut pipe inlet and outlet openings
• Integrated opening for a 2-in-1 lifting key
• Molded Rain Bird branding and model number
• Nestable design for compact storage
• Application: Underground garden irrigation installations
• Package contents: 1 round valve box with green lid

Frequently asked questions

What is the Rain Bird VBA02672 used for?

The round valve box is designed to protect smaller irrigation components, such as individual irrigation valves, manual shut-off valves and pipe connections, while keeping them accessible for maintenance.

Is the green lid included?

Yes. The Rain Bird VBA02672 is supplied with a matching green bayonet-type lid.

What are the dimensions of the Rain Bird VBA02672?

The valve box has a top diameter of 16 cm, a bottom diameter of 20 cm and an overall height of 23.65 cm.

How is the lid opened?

The green lid features a bayonet-type closure that can be released by twisting. An integrated notch also allows the use of a compatible lifting key.

Can the valve box be installed directly in a lawn?

Yes. The Rain Bird VBA02672 is designed for underground installation. The green lid should remain accessible at ground level to allow inspection and maintenance of the installed components.
