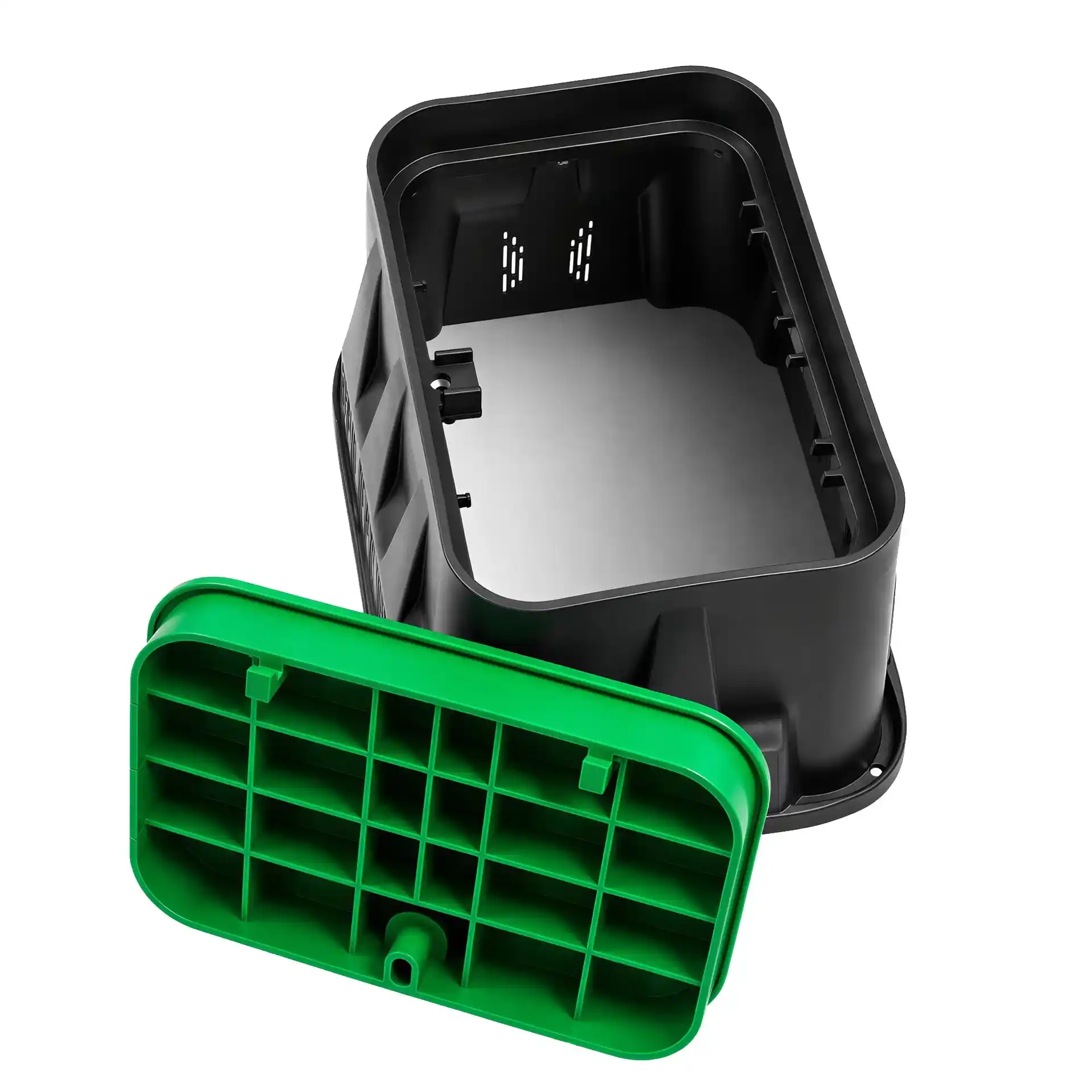

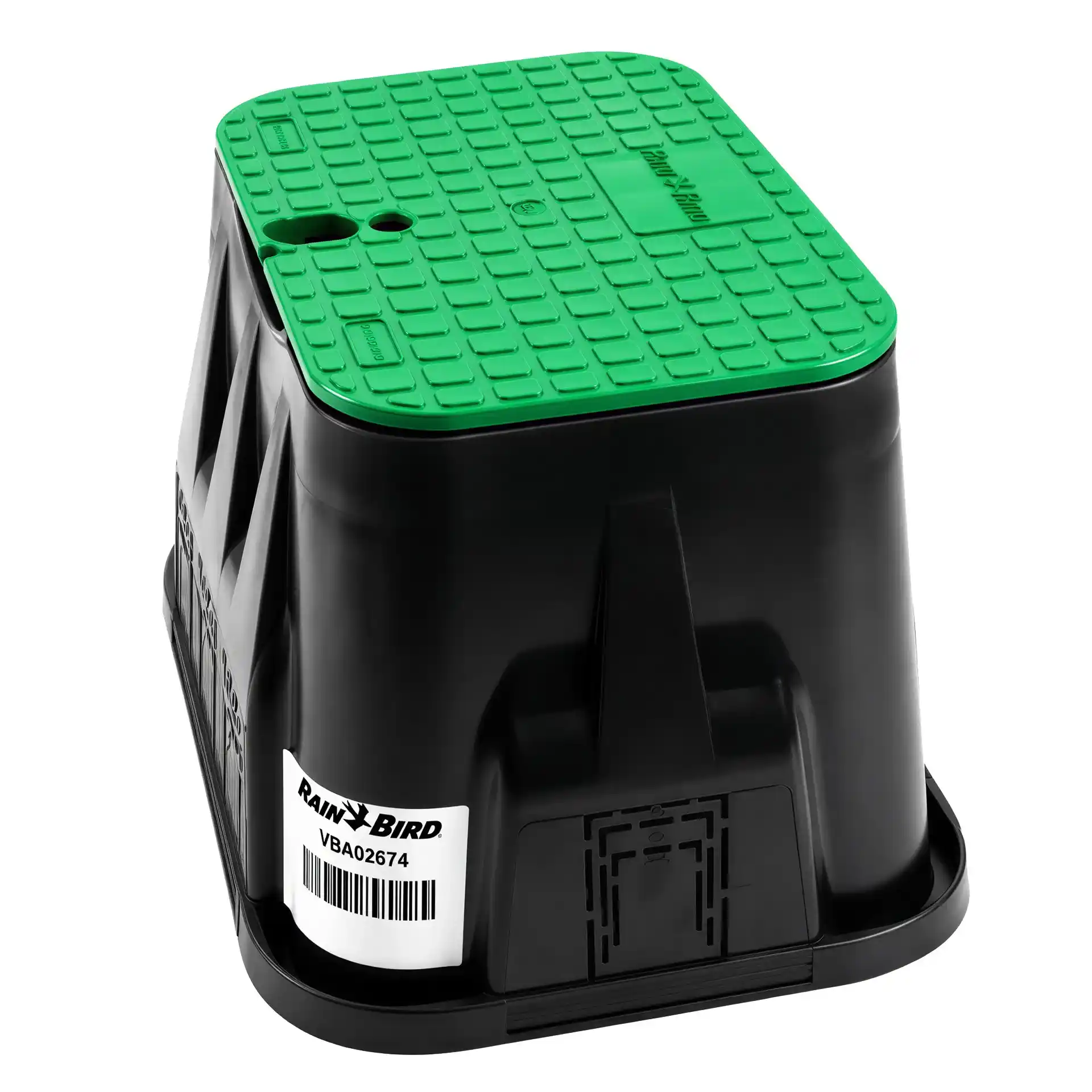

Rain Bird VBA02674 rectangular standard valve box - 50 x 37 x 31 cm - lockable green lid

Rain Bird VBA02674 rectangular standard valve box

The Rain Bird VBA02674 is a rectangular standard valve box with a black plastic housing and a lockable green lid. Designed for underground installation in automatic irrigation systems, it provides a protective enclosure for irrigation valves, manifolds and compatible pipe fittings. Its durable construction helps keep essential irrigation components protected and accessible for maintenance.

With bottom external dimensions of 50.5 x 37 cm and an overall height of 30.5 cm, the valve box is suitable for residential gardens and smaller irrigation installations. The green lid blends naturally into lawns and landscaped areas.

Lockable green lid with T-COVER system

The Rain Bird VBA02674 features the T-COVER lid system with a lockable closure. The green cover fits onto the black housing and helps protect the installed irrigation valves and pipe connections from direct contact with soil and debris.

An integrated opening and notch make it easier to lift the lid using a compatible Rain Bird 2-in-1 lifting key. The molded model number and Rain Bird branding allow quick identification during maintenance. The lockable lid provides additional protection against unauthorized access.

Durable polypropylene housing and practical pipe openings

The housing is manufactured from black polypropylene, while the green lid is made from the same material. This durable plastic is suitable for underground applications. The lightweight construction also makes the valve box easy to transport, position and install.

Pre-cut pipe openings simplify the installation of irrigation lines. The openings measure 7 cm wide and 10.5 cm high and can be prepared without additional tools. This allows compatible polyethylene pipes and valve manifolds to be routed into the enclosure.

Extendable valve box for garden irrigation systems

The Rain Bird VBA02674 is suitable for installing various irrigation components, including solenoid valves with 24V or 9V solenoids, PVC valve manifolds and compatible threaded fittings. The number of valves that can be installed depends on their dimensions and the arrangement of the pipework.

Compatible extension components are available for deeper installations. During installation, provide a stable base, sufficient clearance around pipe connections and easy access to the lid. This makes it possible to inspect, replace or service irrigation valves without excavating the complete system.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: VBA02674
• Product type: Rectangular standard valve box
• Series: Rain Bird VBA
• Housing material: Polypropylene
• Housing color: Black
• Lid color: Green
• Lid: Lockable, T-COVER system
• Bottom external dimensions: 50.5 x 37.0 cm (L x W)
• Top external dimensions: 38.6 x 26.7 cm (L x W)
• Overall height: 30.5 cm
• Pipe opening width: 7.0 cm
• Pipe opening height: 10.5 cm
• Pre-cut pipe inlet and outlet openings
• Compatible with suitable VBA extension components
• Molded Rain Bird branding and model number
• Integrated opening and notch for a compatible lifting key
• Nestable construction for space-saving storage
• Application: Underground garden irrigation installations
• Package contents: 1 rectangular valve box with green lid

Frequently asked questions

What are the dimensions of the Rain Bird VBA02674?

The bottom external dimensions are 50.5 x 37 cm, while the top external dimensions are 38.6 x 26.7 cm. The overall height is 30.5 cm.

Is the green lid lockable?

Yes. The Rain Bird VBA02674 features a lockable green lid with the T-COVER system.

How many irrigation valves fit inside the box?

The number depends on the size of the valves, the manifolds used and the pipe arrangement. Always allow sufficient clearance for future maintenance.

Can the valve box be extended in height?

Yes. Compatible extension components are available for the Rain Bird VBA02674, allowing the installation depth to be adapted to deeper pipes and valves.

What size are the pipe openings?

The pre-cut pipe openings are 7 cm wide and 10.5 cm high, providing convenient access for suitable irrigation pipes.
