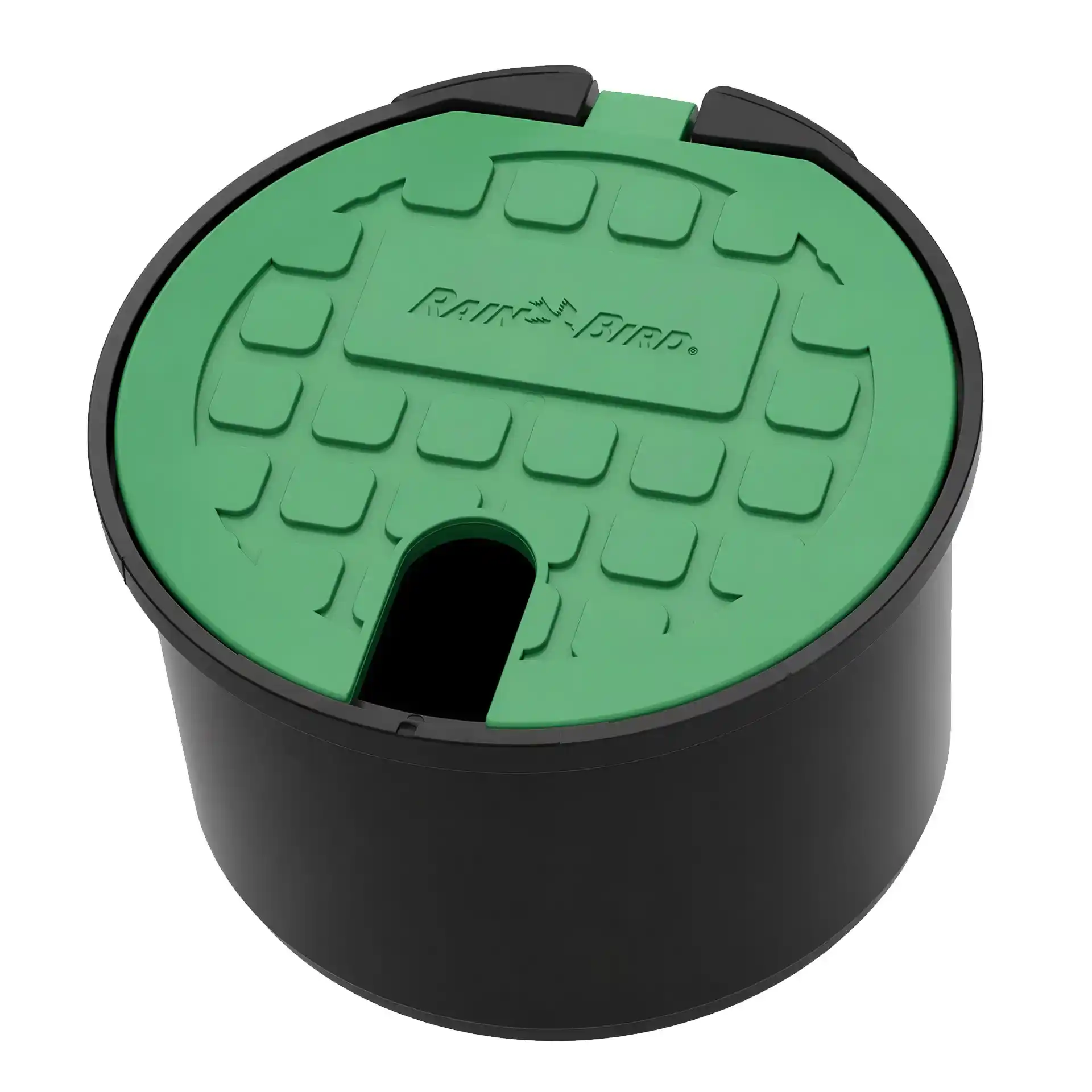

Rain Bird VBA17186 round irrigation hydrant with ¾-inch ball valve and green lid

Rain Bird VBA17186 irrigation hydrant with built-in ball valve

The Rain Bird VBA17186 is a compact round irrigation hydrant with a built-in 3/4-inch ball valve and green lid. It provides a convenient underground water access point for gardens, lawns, flower beds and landscaped areas. The water connection remains protected inside the housing while being easily accessible whenever manual watering is required.

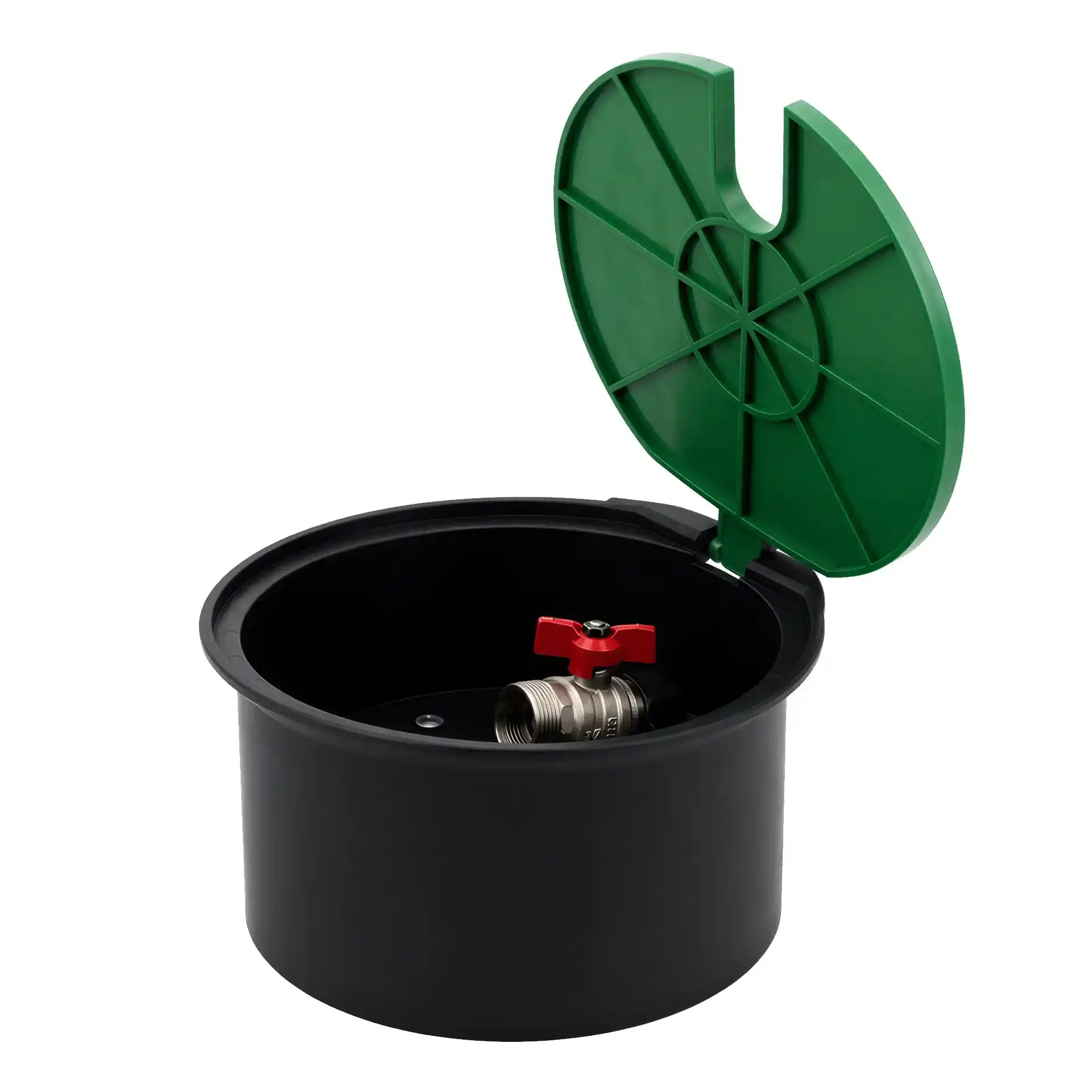

Unlike a conventional valve box, the VBA17186 already includes a manually operated ball valve. This allows you to turn the water supply on and off directly at the hydrant and connect suitable hose fittings or other irrigation accessories.

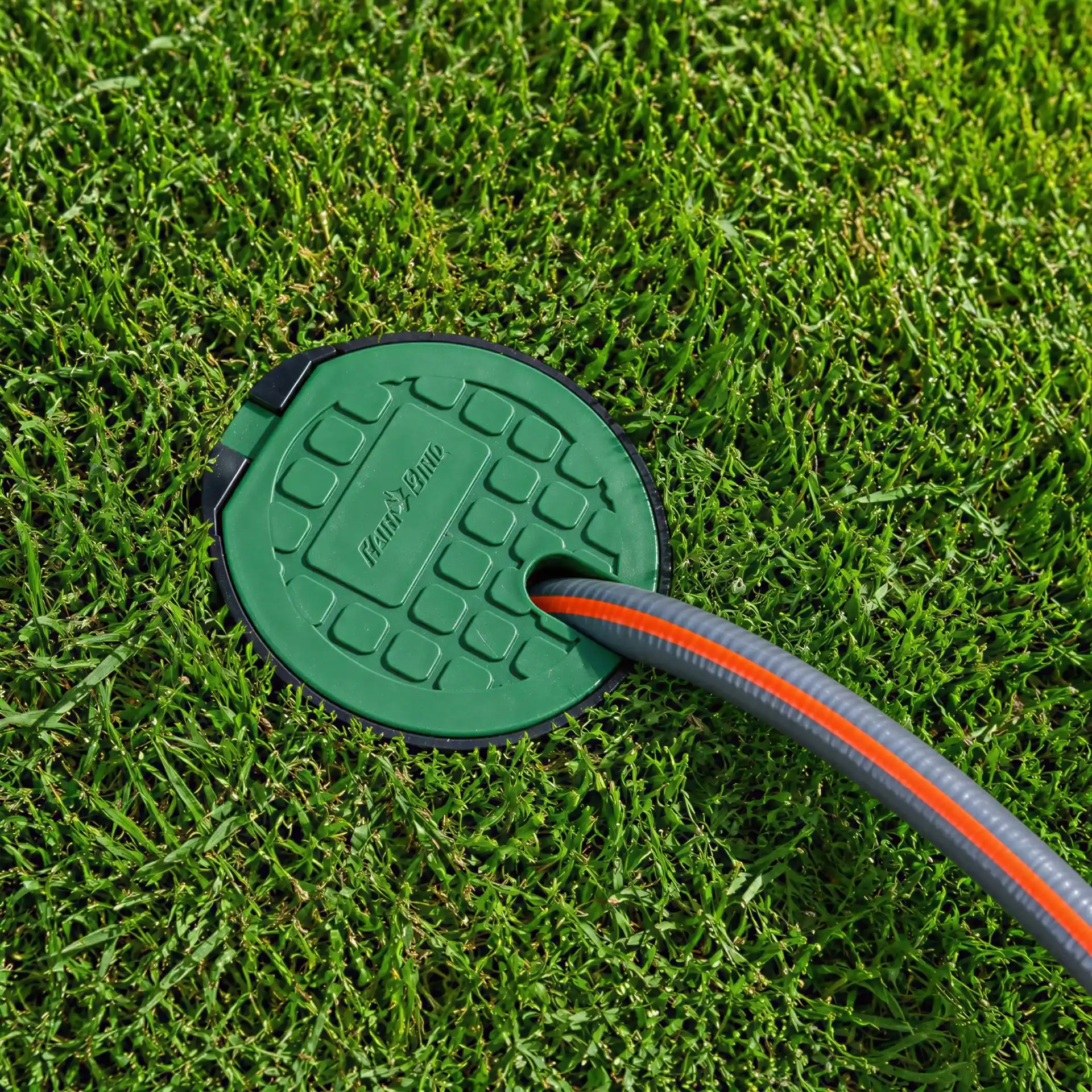

Convenient water access throughout your garden

The Rain Bird VBA17186 makes it easy to create an additional water access point in your garden. It is particularly useful when an existing outdoor tap is far away or when you need water for manual irrigation in a specific area.

The integrated ball valve features a 3/4-inch female threaded inlet and a 3/4-inch male threaded outlet. These connections allow the hydrant to be integrated into an irrigation system using compatible pipe fittings and hose connectors.

Green lid and durable polypropylene housing

The black housing is made from polypropylene and is designed for underground installation. Its green lid blends naturally into lawns and planted areas. When closed, the cover helps protect the water connection from direct contact with soil and debris.

With a top diameter of 21 cm, a bottom diameter of 18 cm and an overall height of 12 cm, the irrigation hydrant requires relatively little installation space. Its compact design allows discreet positioning in accessible garden locations.

Easy operation for everyday garden watering

Water is supplied through the integrated ball valve. Open the green lid, attach a suitable hose connector if required and operate the valve to start the water flow. After watering, close the valve and cover the connection with the lid.

During installation, ensure that the hydrant is positioned on a stable base and connected using suitable pipe fittings. The lid should remain easily accessible. Frost protection is also important: before winter, the connected pipework and valve must be drained or otherwise protected against freezing according to the irrigation system design.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: VBA17186
• Product type: Round irrigation hydrant with built-in ball valve
• Water inlet: 3/4-inch female thread (20/27)
• Water outlet: 3/4-inch male thread (20/27)
• Valve: Manually operated ball valve
• Top diameter: 21 cm
• Bottom diameter: 18 cm
• Overall height: 12 cm
• Housing material: Polypropylene
• Housing color: Black
• Lid color: Green
• Installation: Underground
• Application: Manual water access and garden irrigation
• Package contents: 1 irrigation hydrant with built-in ball valve and green lid

Frequently asked questions

What is the Rain Bird VBA17186 used for?

The irrigation hydrant provides an additional water access point in the garden. Its integrated ball valve allows the water supply to be turned on and off manually.

Is the ball valve already installed?

Yes. The Rain Bird VBA17186 is supplied with a built-in 3/4-inch ball valve, so an additional shut-off valve inside the housing is not required.

What connections does the hydrant have?

The water inlet features a 3/4-inch female thread, while the outlet has a 3/4-inch male thread. A suitable adapter may be required to connect a garden hose.

What are the dimensions of the Rain Bird VBA17186?

The hydrant measures 21 cm in diameter at the top, 18 cm at the bottom and 12 cm in overall height.

Is the irrigation hydrant frost-proof?

Automatic frost drainage has not been confirmed for this model. The valve and connected pipework must therefore be adequately protected against freezing during winter.
