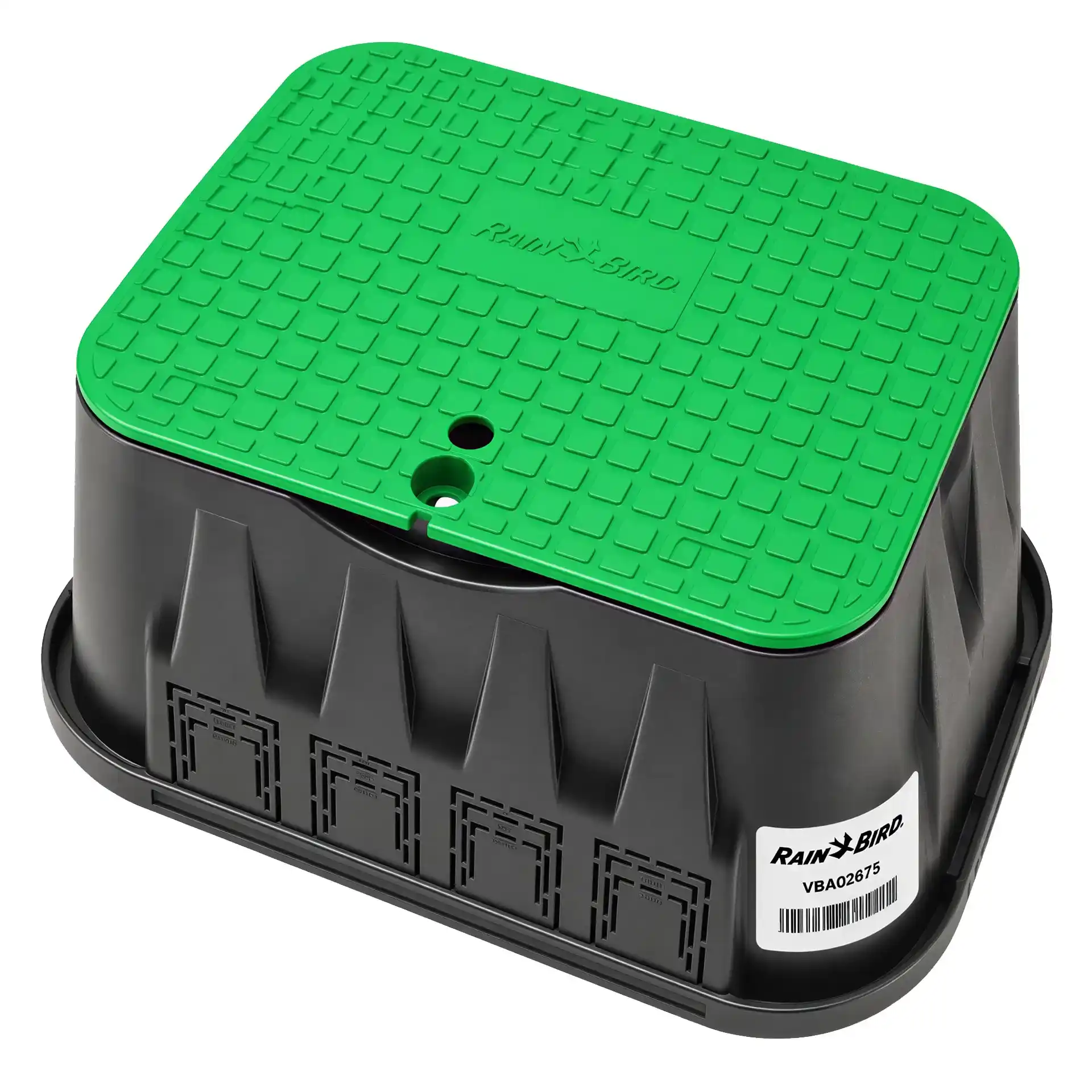

Rain Bird VBA02675 rectangular jumbo valve box - 63 x 48 x 31 cm - lockable green lid

Rain Bird VBA02675 rectangular jumbo valve box

The Rain Bird VBA02675 is a spacious rectangular jumbo valve box with a black polypropylene housing and a lockable green lid. Designed for underground installation in automatic irrigation systems, it provides a protective enclosure for solenoid valves, valve manifolds and compatible pipe fittings. Its durable construction helps protect important irrigation components from soil and debris while keeping them accessible for inspection and maintenance.

With bottom dimensions of 63 x 48 cm and an overall height of 30.5 cm, the jumbo valve box offers generous installation space for larger valve assemblies. Its green lid blends naturally into lawns, landscaped gardens and other outdoor areas.

Lockable green lid with T-COVER system

The Rain Bird VBA02675 features a green lid with a bolt locking mechanism. The Rain Bird T-COVER design provides a secure cover for the underground enclosure and allows access to the installed irrigation components to be restricted when required.

An integrated opening and notch make it easier to lift the lid using a compatible Rain Bird 2-in-1 lifting key. Molded Rain Bird branding and the model number help identify the valve box during future servicing and maintenance.

Durable polypropylene housing with practical pipe openings

Both the black housing and green lid are manufactured from polypropylene. This durable, lightweight material is suitable for underground irrigation installations and makes the valve box easier to handle during transport and installation.

The tapered construction allows multiple valve box bodies to be nested together for compact storage. Pre-cut pipe inlet and outlet openings simplify pipe installation. Measuring 8 cm wide and 10.5 cm high, these openings can be prepared without additional tools and accommodate suitable irrigation pipes and connections.

Extendable jumbo valve box for larger irrigation systems

The Rain Bird VBA02675 is particularly suitable for irrigation systems with several solenoid valves, PVC manifolds and larger pipe assemblies. Its spacious interior allows flexible component positioning and helps maintain access for future repairs and maintenance.

The actual number of valves that can be installed depends on their dimensions and the layout of the pipework. For deeper installations, the compatible Rain Bird VBA07777 extension is available. The matching VBA02675C replacement lid also allows a damaged cover to be replaced without removing the complete valve box.

During installation, provide a stable base, sufficient clearance around valves and fittings, and convenient access to the lid at ground level. This makes future inspection and servicing considerably easier.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: VBA02675
• Product type: Rectangular jumbo valve box
• Series: Rain Bird VBA
• Housing material: Polypropylene
• Housing color: Black
• Lid color: Green
• Lid closure: Lockable bolt mechanism
• Lid system: Rain Bird T-COVER
• Bottom dimensions: 63.0 x 48.0 cm (L x W)
• Top dimensions: 54.5 x 38.0 cm (L x W)
• Overall height: 30.5 cm
• Pipe opening width: 8.0 cm
• Pipe opening height: 10.5 cm
• Pre-cut pipe inlet and outlet openings
• Compatible extension: Rain Bird VBA07777
• Compatible replacement lid: Rain Bird VBA02675C
• Molded Rain Bird branding and model number
• Integrated opening and notch for a compatible lifting key
• Nestable housing design
• Application: Underground garden irrigation installations
• Package contents: 1 rectangular jumbo valve box with green lid

Frequently asked questions

What are the dimensions of the Rain Bird VBA02675?

The valve box measures 63 x 48 cm at the bottom and 54.5 x 38 cm at the top, with an overall height of 30.5 cm.

Is the green lid lockable?

Yes. The Rain Bird VBA02675 features a green lid with a bolt locking mechanism and the Rain Bird T-COVER system.

How many solenoid valves can be installed?

The number depends on the dimensions of the valves, the manifold configuration and the pipe layout. The jumbo design provides more installation space than the smaller VBA02674 standard valve box.

Can the valve box be extended in height?

Yes. The compatible Rain Bird VBA07777 extension allows the installation depth to be increased for deeper irrigation valves and pipework.

Is a replacement lid available?

Yes. The Rain Bird VBA02675C replacement lid is compatible with both the VBA02675 jumbo valve box and the VBA07777 extension.
