Rain Bird RWS-S-B-1401 root watering system - 25.4 cm height

Targeted irrigation directly in the root zone

The Rain Bird RWS-S-B-1401 is a compact root watering system designed for trees and shrubs. Water is delivered below the soil surface directly into the root zone, helping provide water and air where they are needed by the plant's root system.

At only 25.4 cm long, the RWS-S-B-1401 is the compact Supplemental version of the Rain Bird RWS series. It is particularly suitable for shrubs, smaller woody plants and applications where the larger 45.7 or 91.4 cm RWS systems are not required.

1401 bubbler with 0.95 l/min included

The RWS-S-B-1401 is factory equipped with a Rain Bird 1401 bubbler. It delivers 0.95 l/min, corresponding to approximately 57 l/h, providing controlled water delivery directly within the root watering system.

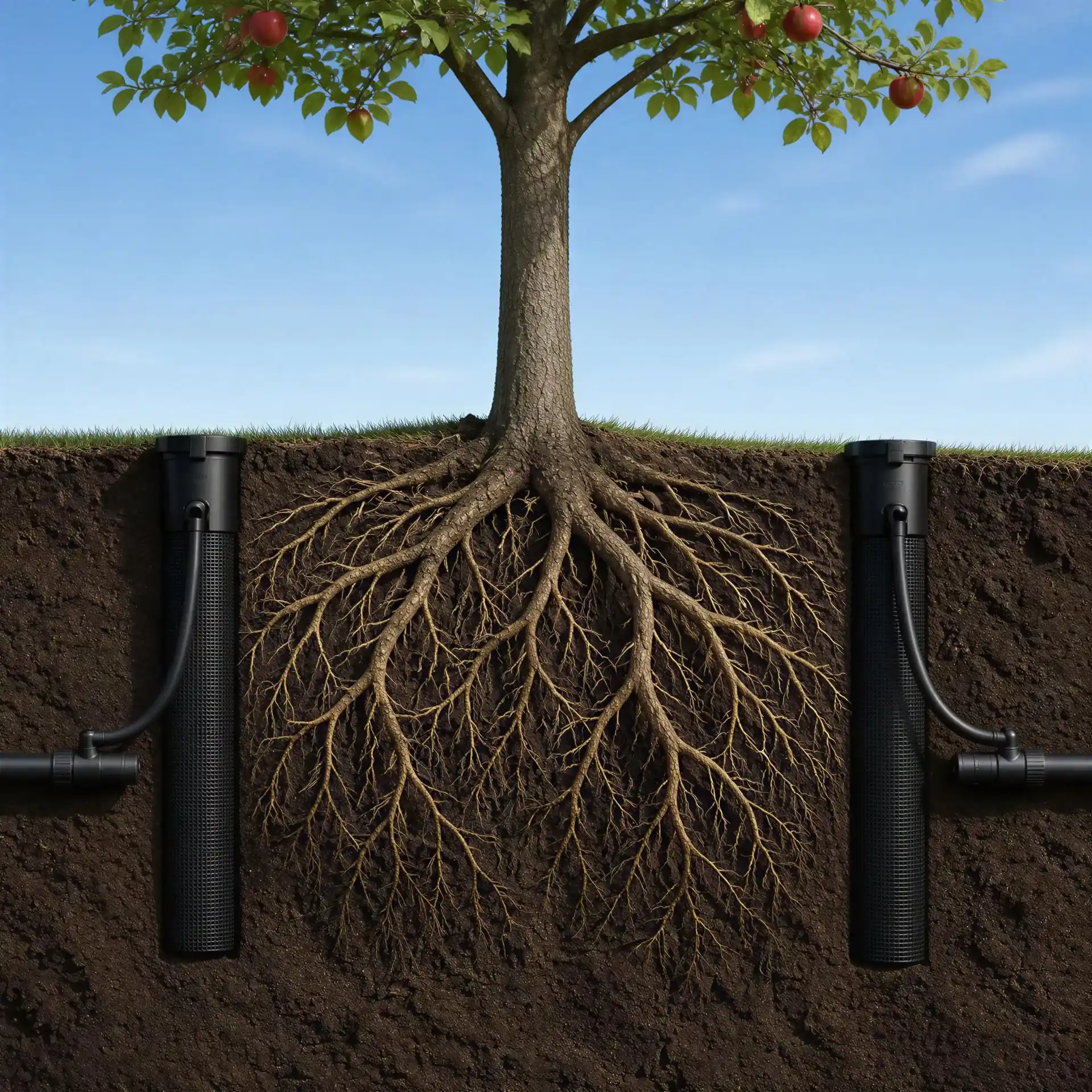

The bubbler is positioned inside the root watering assembly. Water enters the perforated basket structure and is distributed into the surrounding soil and root zone.

Below-ground irrigation with reduced losses

Because water is delivered below the surface, losses caused by wind and surface evaporation are reduced. The system also supports deeper irrigation and can help discourage shallow root development.

Rain Bird states that the RWS series can provide distribution uniformity of up to 95%, making below-ground root watering an efficient solution for trees and shrubs.

Compact 25.4 cm design

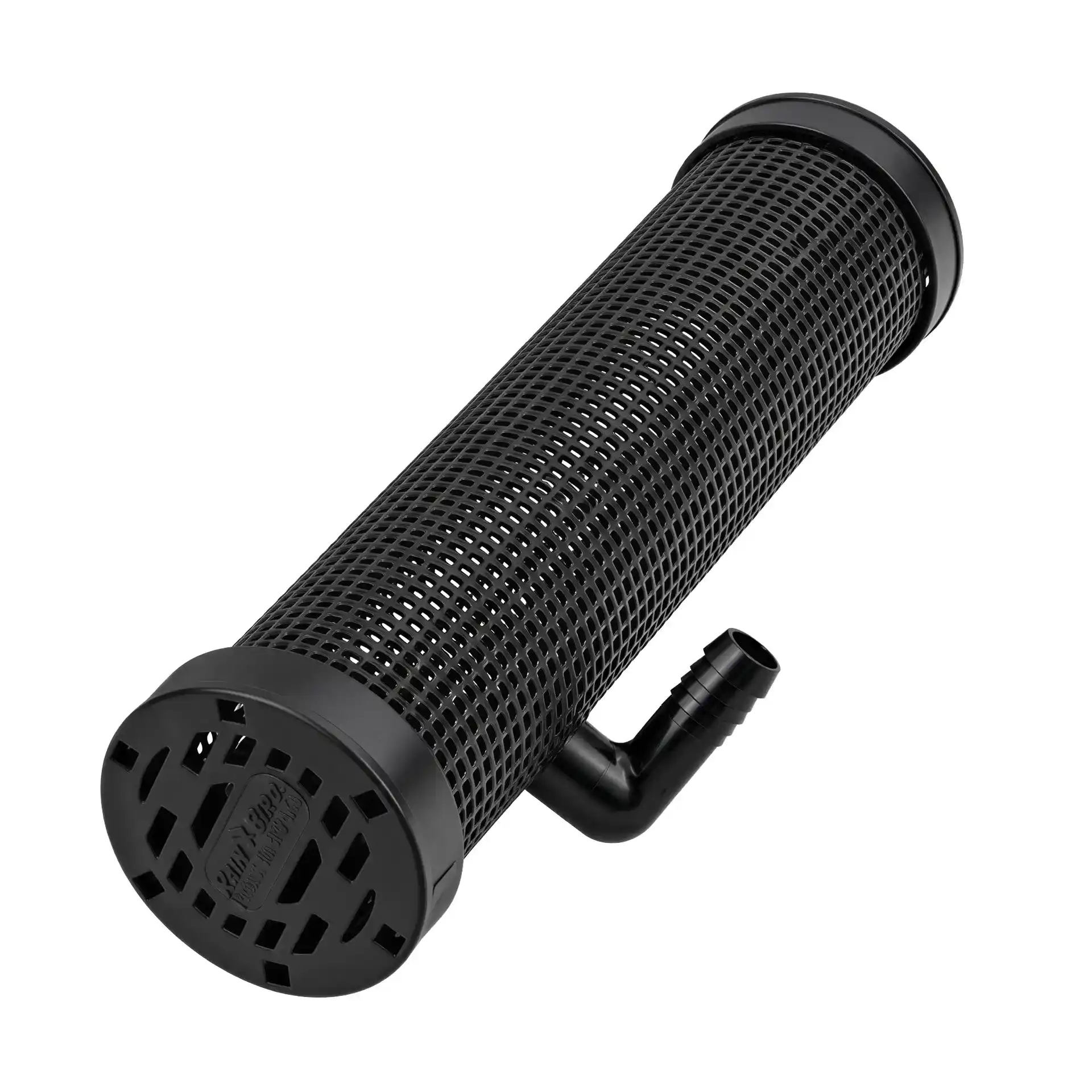

The RWS-S-B-1401 features a semi-rigid perforated basket measuring 5.1 cm in diameter and 25.4 cm in length. A 5.1 cm snap-on cap closes the top of the assembly, while a matching base cap is fitted at the bottom.

During installation, the top of the cap should be positioned flush with finished grade or the top of the mulch layer. Rain Bird recommends filling the basket with pea gravel after installation before replacing the top cap.

Easy connection to the irrigation line

A factory-installed ½" spiral barb elbow simplifies connection to the irrigation supply line. The connection incorporates a ½" male NPT inlet.

The system is supplied as a factory-assembled unit, eliminating the need to assemble the bubbler, basket and connection individually. The RWS-S-B-1401 can be incorporated into an automatically controlled irrigation zone.

Technical data and dimensions

• Manufacturer: Rain Bird
• Model: RWS-S-B-1401
• Product type: Root watering system
• Series: RWS Supplemental
• Application: Trees, shrubs and woody plants
• Height / length: 25.4 cm
• Diameter: 5.1 cm
• Bubbler: Rain Bird 1401
• Bubbler flow rate: 0.95 l/min
• Bubbler flow rate: approx. 57 l/h
• Connection: ½" male NPT
• Connection type: Spiral barb elbow
• Top cap: 5.1 cm snap-on cap
• Bottom: Base cap
• Basket: Semi-rigid and perforated
• Installation: Below ground
• Delivery condition: Factory assembled
• Check valve: No

Frequently asked questions about the RWS-S-B-1401

What is the RWS-S-B-1401 used for?

The root watering system is designed for targeted below-ground irrigation of trees, shrubs and other woody plants. Water is delivered directly into the root zone rather than only being applied at the soil surface.

How large is the RWS-S-B-1401?

The Supplemental model measures 25.4 cm in length and 5.1 cm in diameter, making it the most compact version in the Rain Bird RWS range.

Is the bubbler included?

Yes. A Rain Bird 1401 bubbler is factory installed and delivers 0.95 l/min or approximately 57 l/h.

Does the RWS-S-B-1401 include a check valve?

No. The RWS-S-B-1401 is supplied without a check valve. The RWS-S-B-C-1401 version additionally includes a check valve.

How is the root watering system installed?

The unit is installed vertically below ground, with the top of the cap positioned flush with finished grade or the top of the mulch layer.

How does it differ from the larger RWS models?

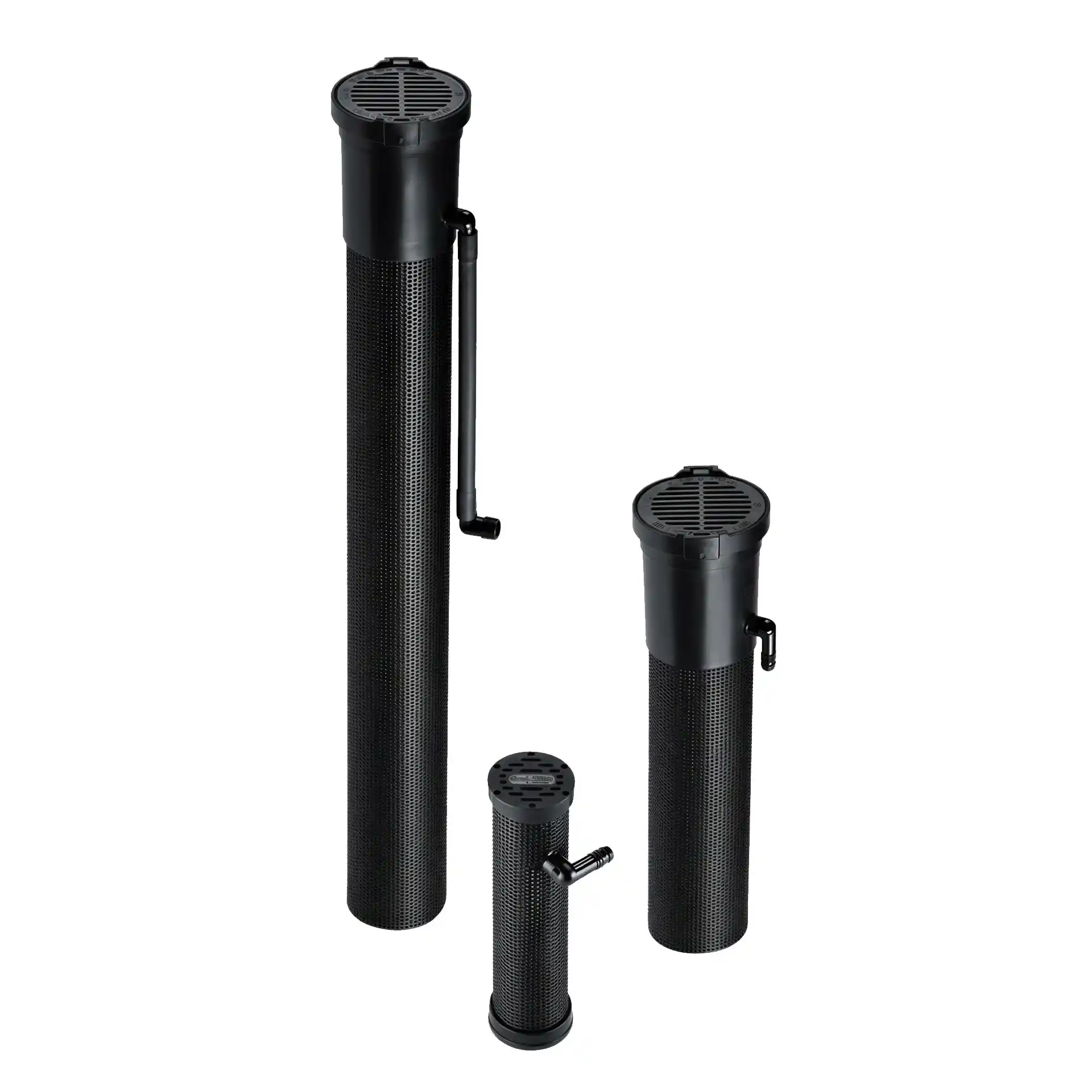

At 25.4 cm, the RWS-S-B-1401 is considerably shorter. The RWS Mini series measures 45.7 cm in length, while the full-size RWS series measures 91.4 cm, allowing the system size to be selected according to the plant and desired watering depth.
