Rain Bird pop-up rotors adjustment tool

Rain Bird adjustment tool for rotors

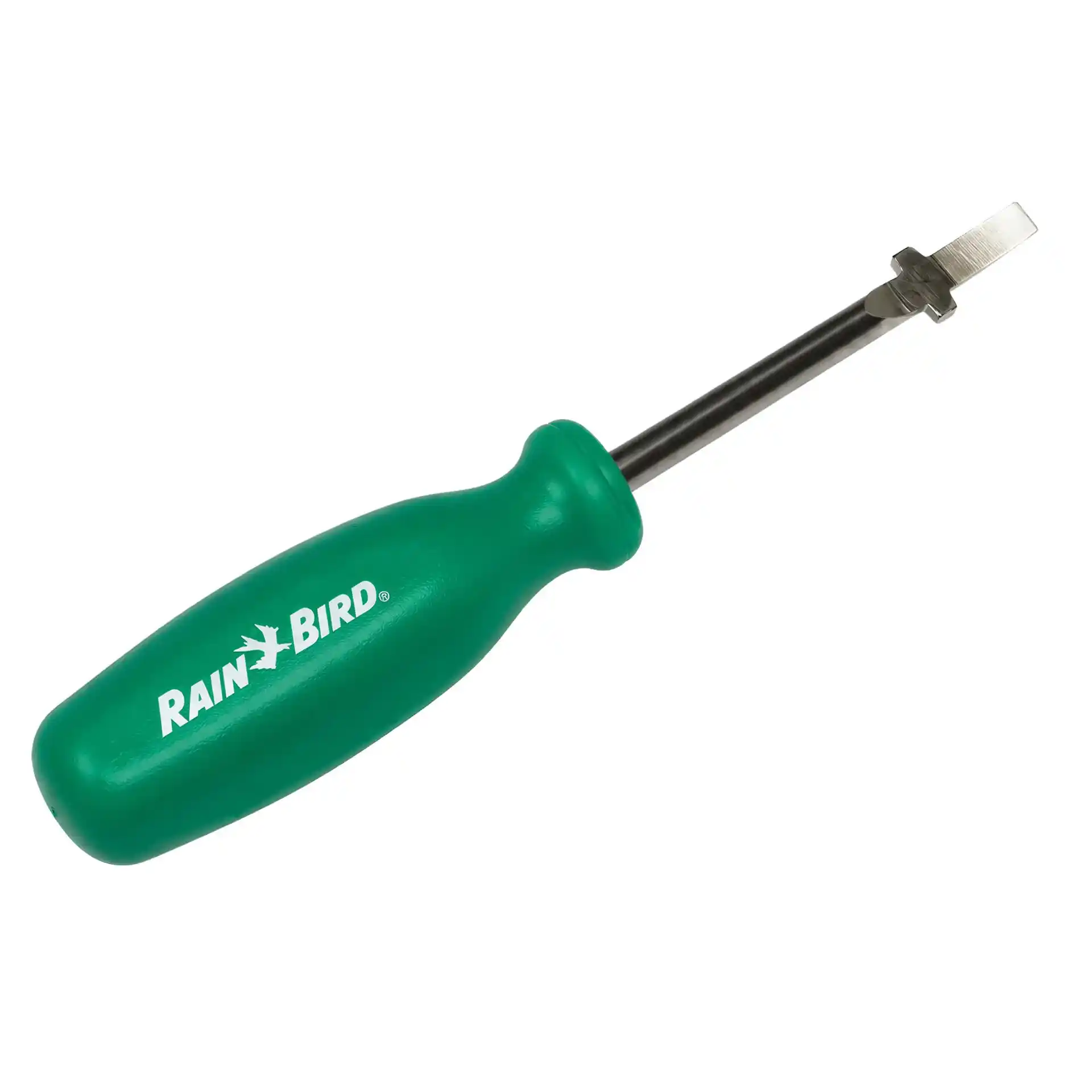

The Rain Bird rotor adjustment tool is a practical universal tool for adjusting and maintaining a wide range of Rain Bird pop-up rotors. It combines a flat-blade screwdriver with a dedicated pull-up function, making adjustment and nozzle replacement considerably easier.

Adjust arc and throw distance

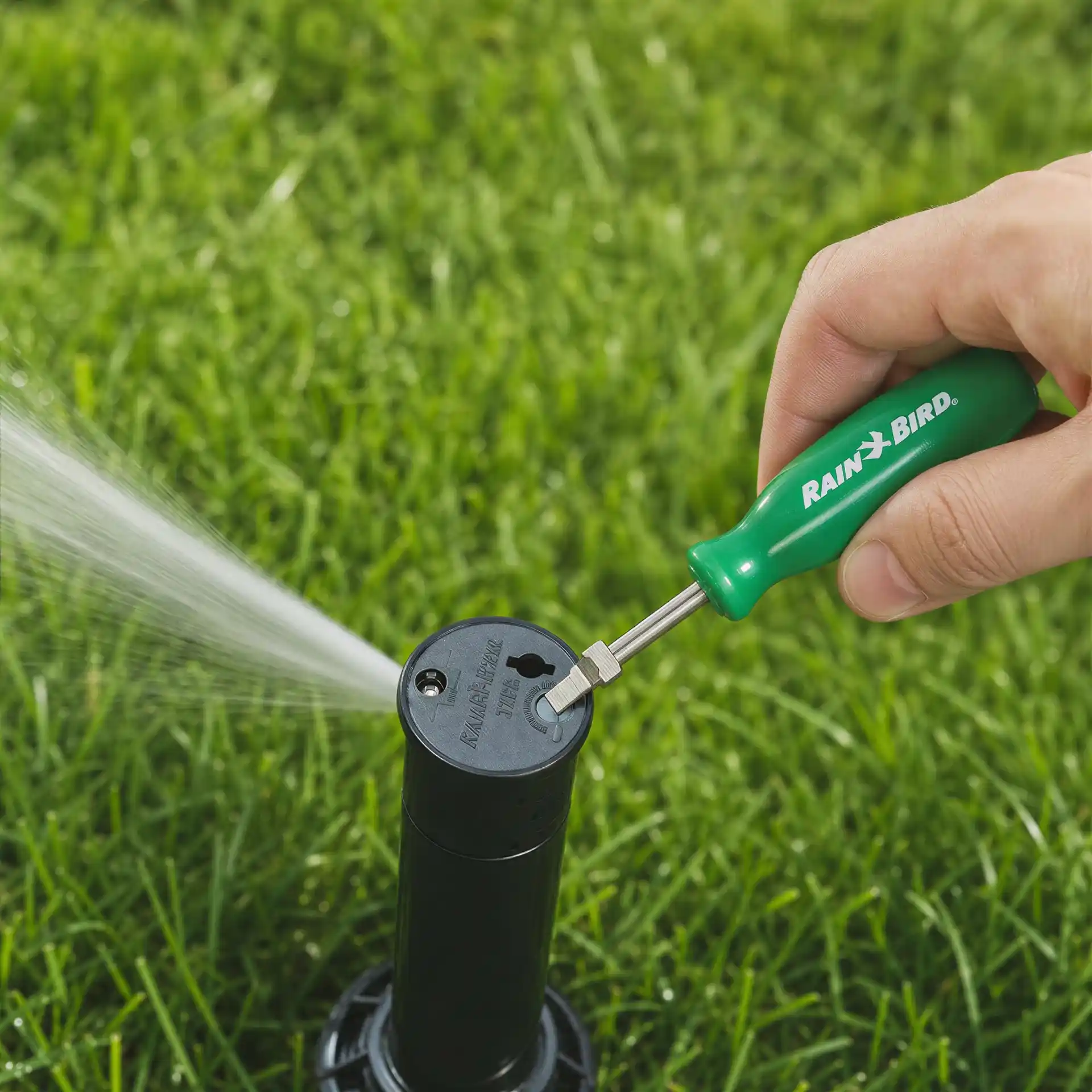

The integrated flat-blade screwdriver can be used for important adjustments on compatible Rain Bird rotors. Depending on the rotor model, this includes adjusting the watering arc and regulating throw distance using the appropriate adjustment screw.

This allows the sprinkler coverage to be accurately matched to the lawn and helps reduce unnecessary watering of paths, walls or neighbouring areas.

Easily pull up the rotor riser

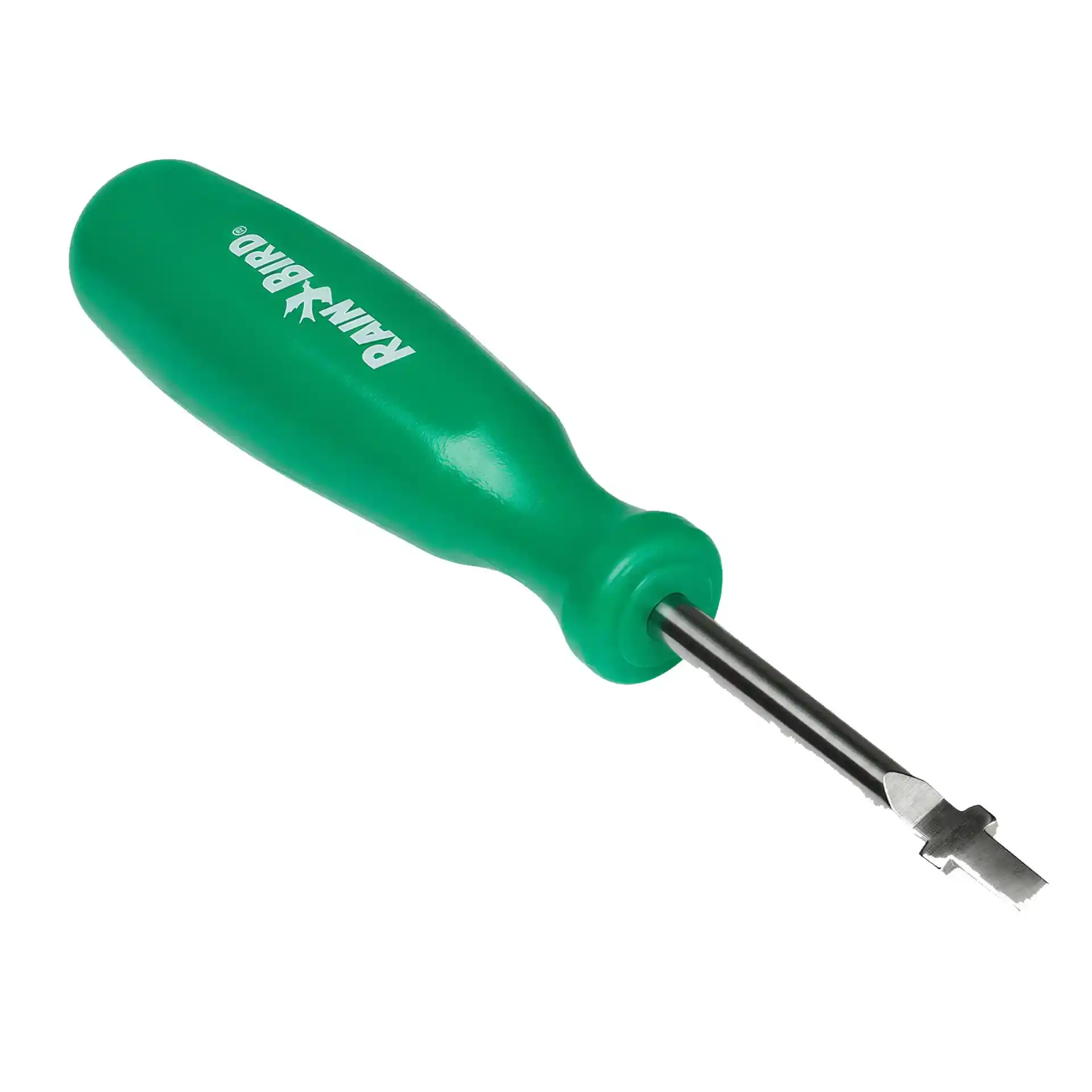

The tool can also be used to pull the rotor riser into its extended position. Its specially designed metal blade engages with the appropriate opening in the rotor head, providing easier access when installing or replacing a nozzle.

Wings on the metal blade help prevent the tool from being pushed too far into the rotor head during maintenance.

Compatible with many Rain Bird rotors

The tool is suitable for numerous Rain Bird rotor series and is a useful accessory for installation, adjustment and routine maintenance of an automatic lawn irrigation system.

Compatible Rain Bird products include the 3500, 5000, 5000 Plus, 5500, Falcon 6504, 7005 and 8005 series, as well as additional compatible rotors.

Technical data

• Manufacturer: Rain Bird
• Product type: Rotor adjustment and pull-up tool
• Function: Flat-blade screwdriver and pull-up tool in one
• For adjusting rotor arc
• For regulating throw distance on compatible rotors
• For pulling up the rotor riser
• For installing and replacing nozzles
• Tool material: Metal
• Handle: Plastic
• Compatible with Rain Bird 3500 Series
• Compatible with Rain Bird 5000 and 5000 Plus Series
• Compatible with Rain Bird 5500 Series
• Compatible with Rain Bird Falcon 6504 Series
• Compatible with Rain Bird 7005 Series
• Compatible with Rain Bird 8005 Series

Frequently asked questions

Can the tool be used to adjust a Rain Bird rotor?

Yes. The integrated flat-blade screwdriver can be used for various adjustments on compatible Rain Bird rotors, including arc and throw-distance adjustments depending on the rotor model.

Can I use it to replace a rotor nozzle?

Yes. The pull-up function allows the rotor riser to be lifted, providing easier access to the nozzle for installation or replacement.

Is it compatible with Rain Bird 5000 rotors?

Yes. Rain Bird lists both the 5000 and 5000 Plus series as compatible.

Can it be used with the Rain Bird 3504?

Yes. The tool is compatible with the Rain Bird 3500 Series, which includes corresponding 3504 rotors.

Is it suitable for Falcon 6504 and 8005 rotors?

Yes. Rain Bird lists both the Falcon 6504 and 8005 Series among the compatible rotor families.
