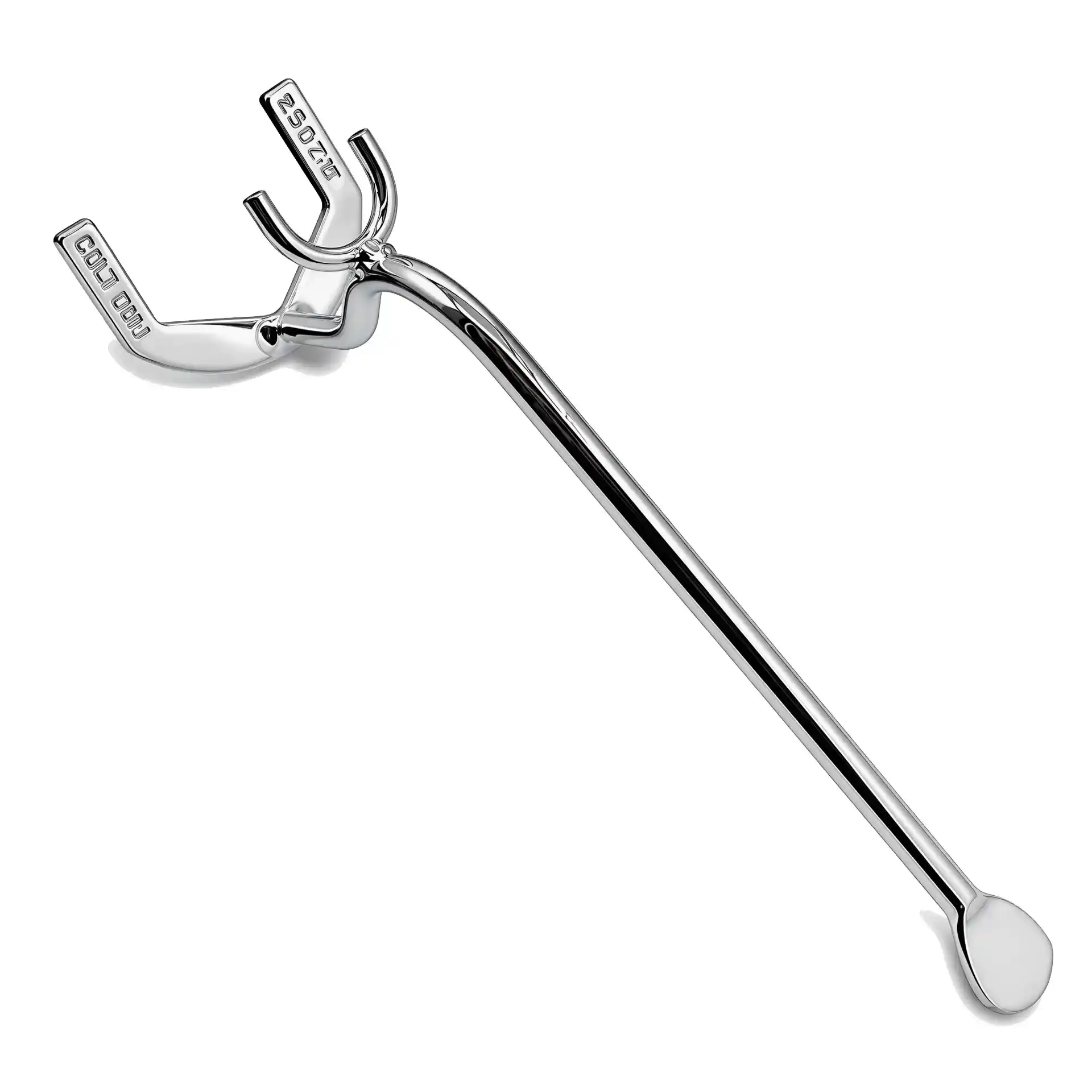

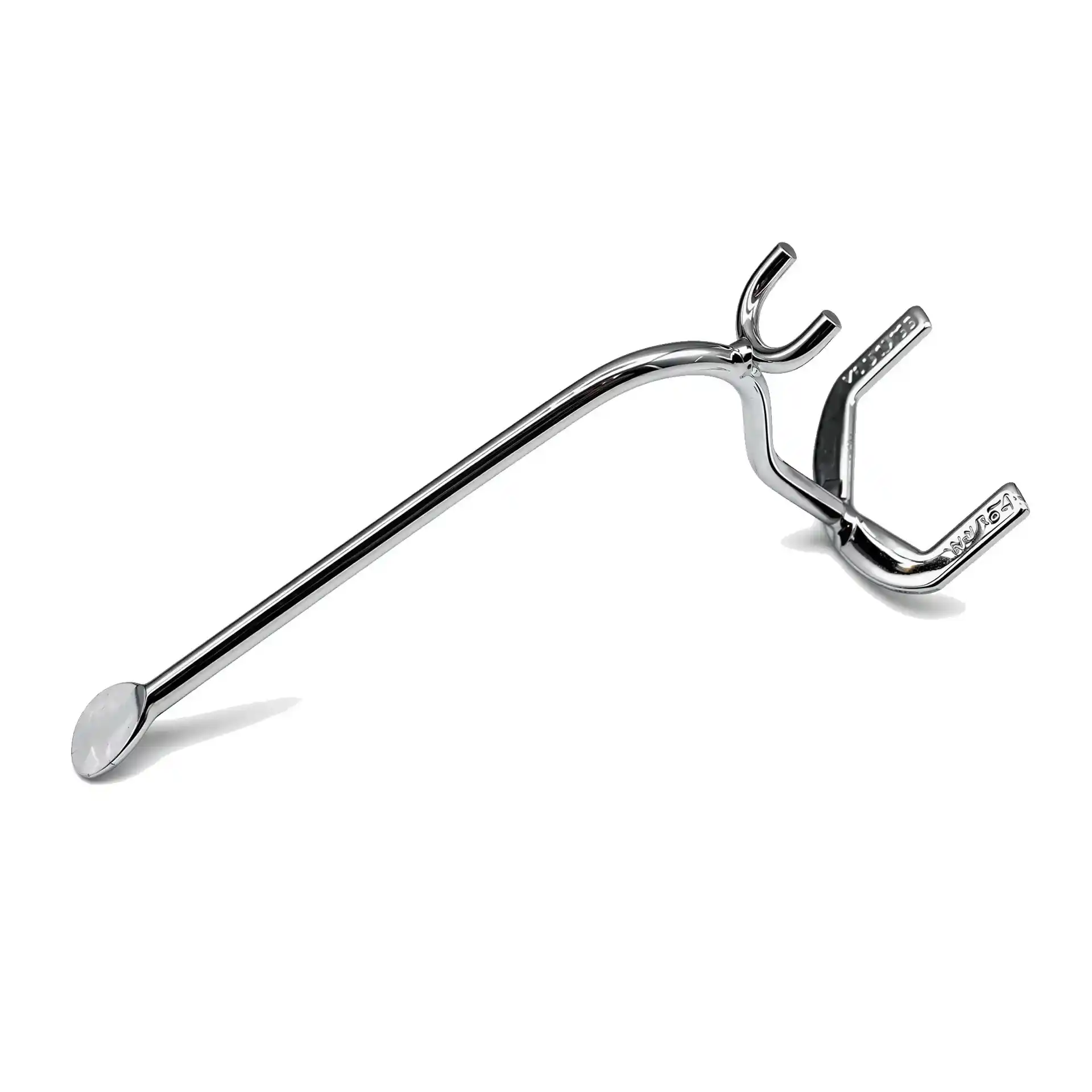

Rain Bird wrench for maintenance 42064 for Maxi-Paw impact sprinklers

Special tool for Maxi-Paw sprinklers

The Rain Bird 42064 maintenance wrench is a dedicated tool for Maxi-Paw and Mini-Paw pop-up impact sprinklers. It simplifies sprinkler maintenance by allowing the complete internal sprinkler assembly to be removed from the top of the installed case.

For many maintenance tasks, there is no need to dig up the complete sprinkler. The outer case and connected irrigation pipe can remain installed in the ground.

Easily remove the internal assembly

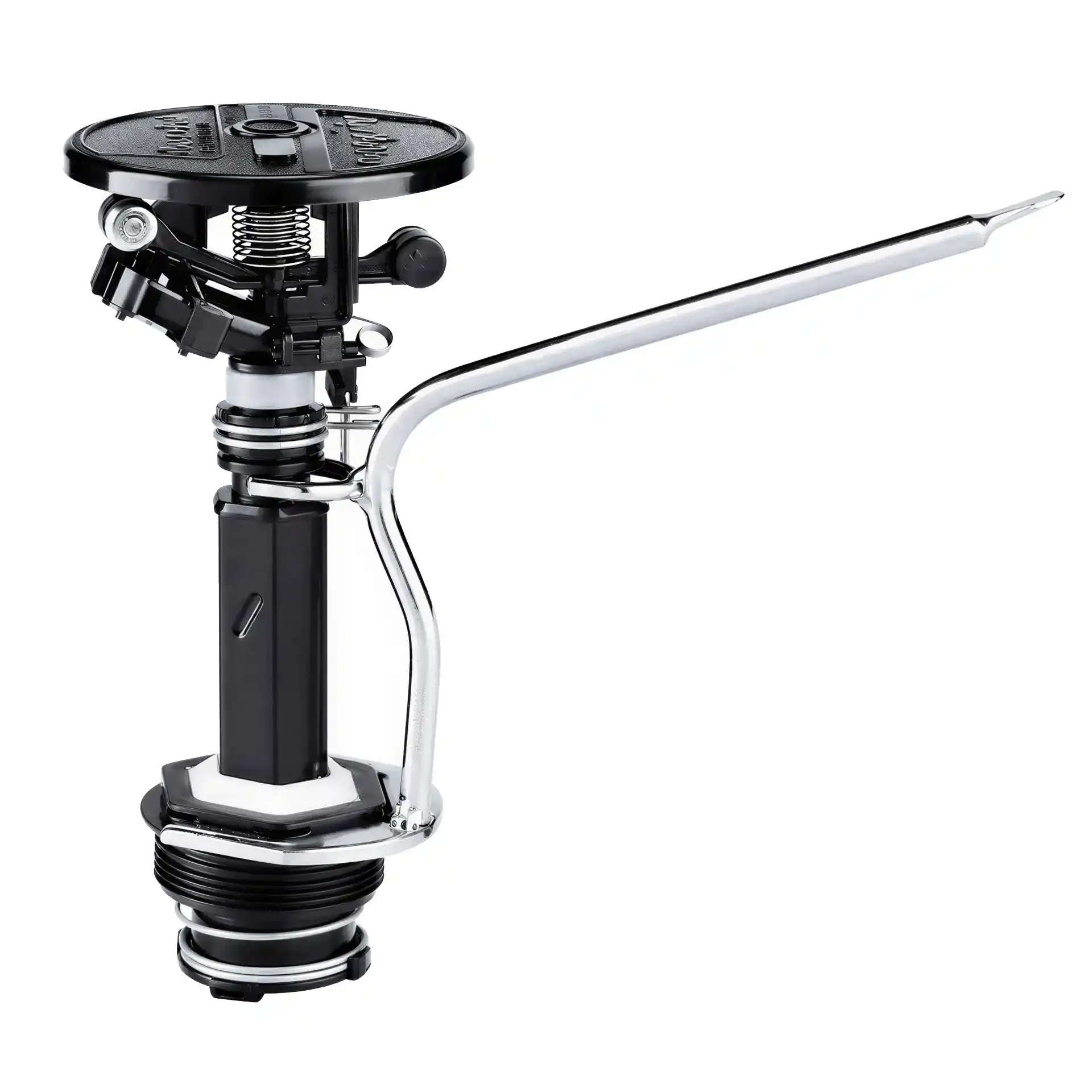

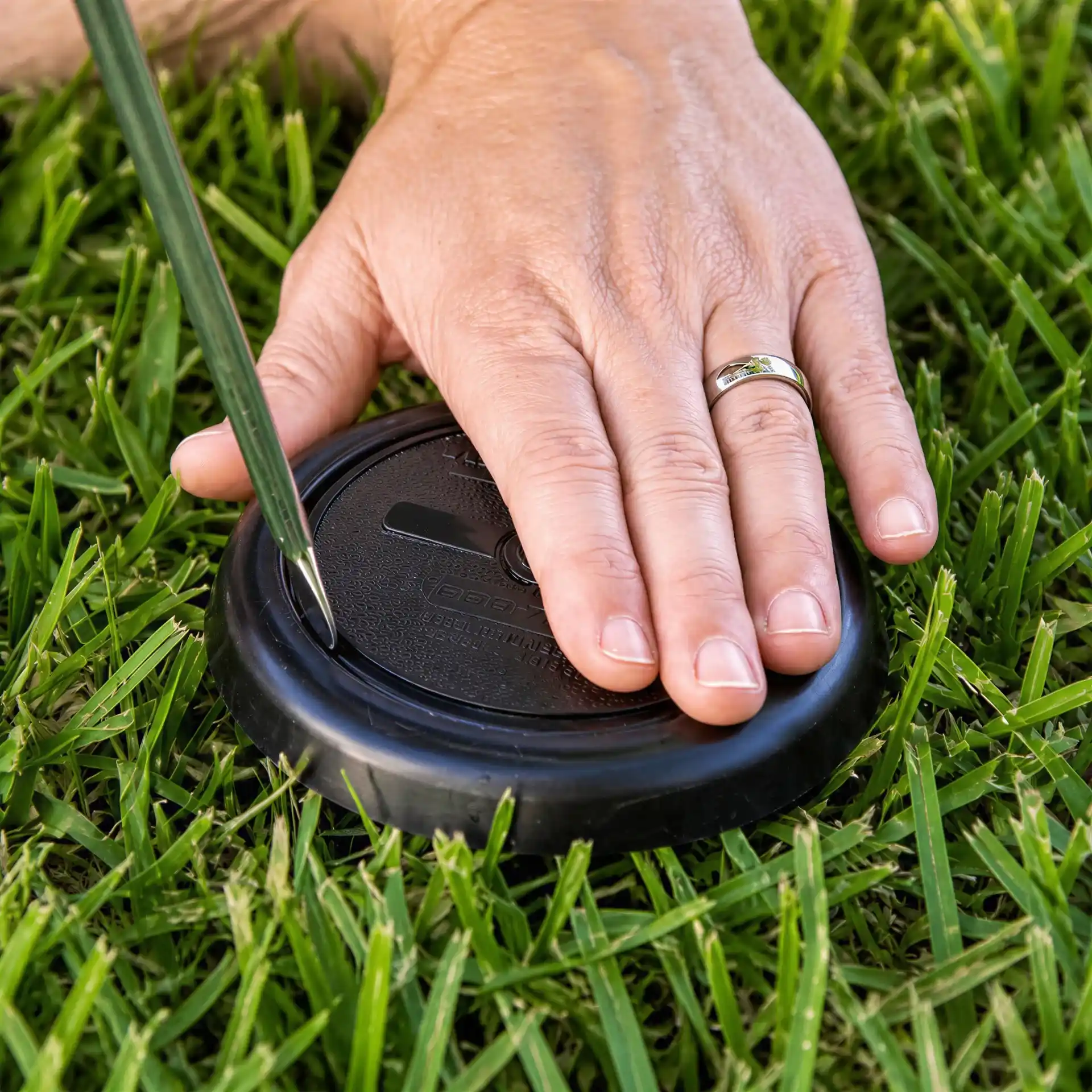

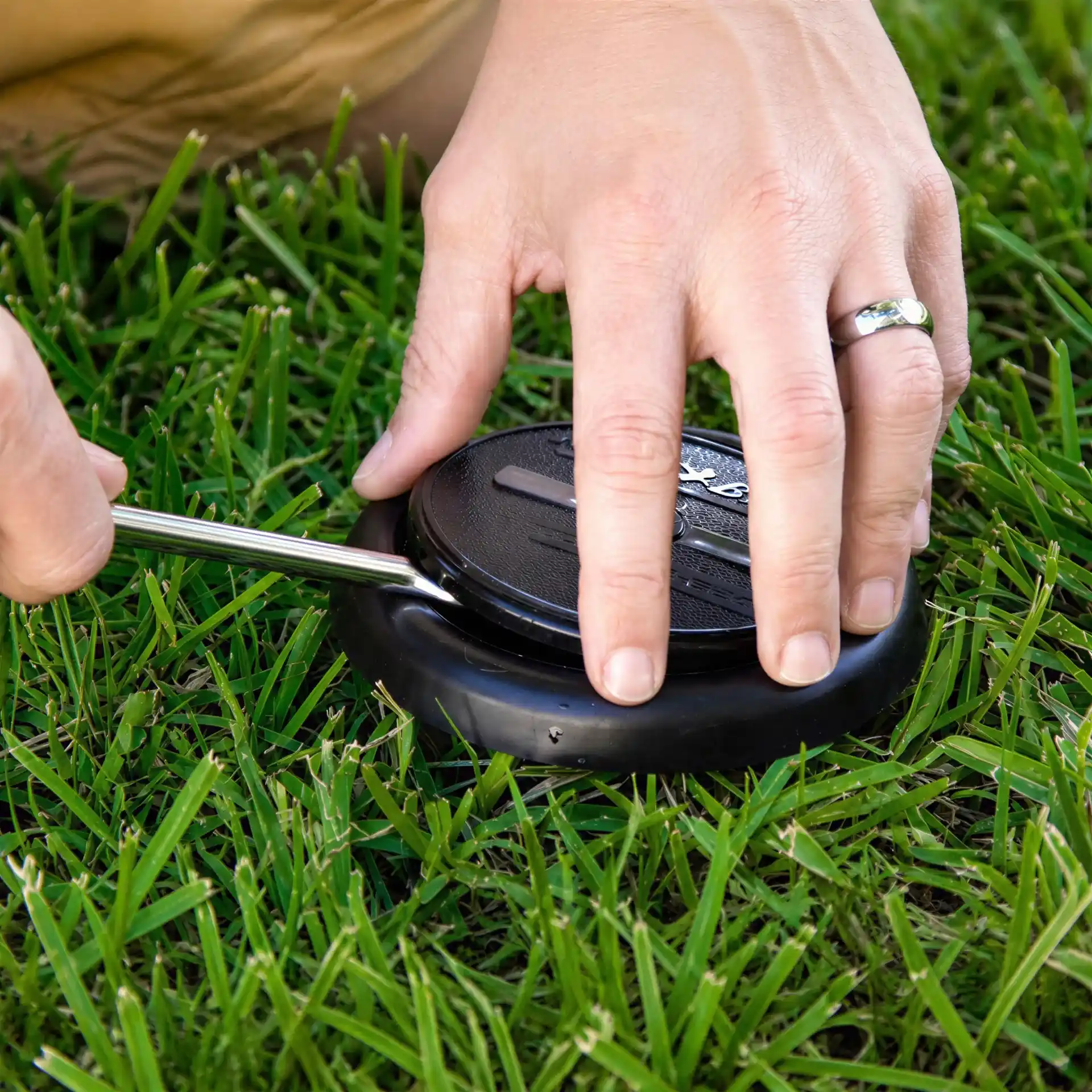

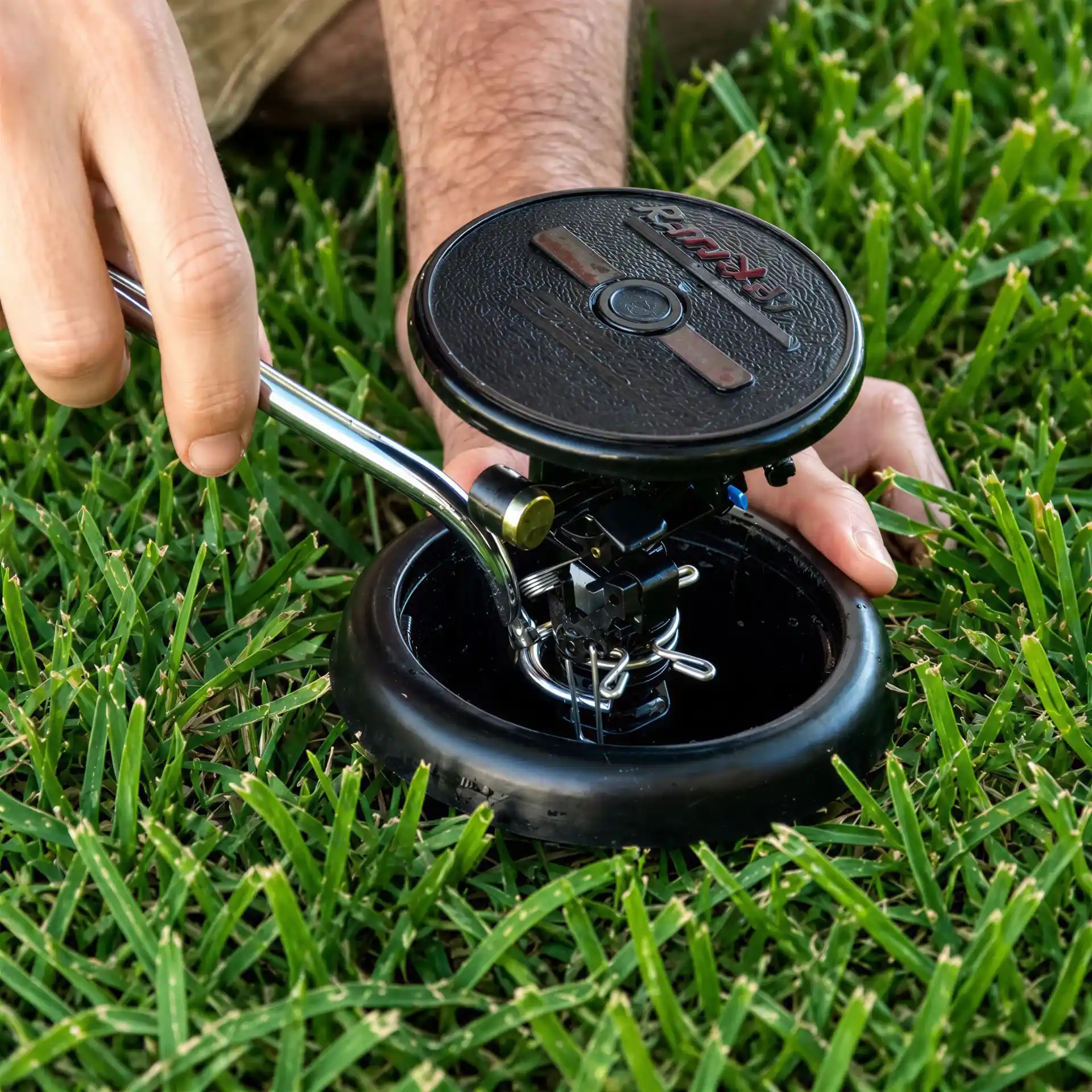

The flat end of the tool can first be used to lift the sprinkler cap. The lower hex section of the wrench is then used to loosen and lift the internal sprinkler mechanism from the case.

Once removed, the internal assembly can be cleaned, inspected or replaced before being installed back into the existing sprinkler case.

Maintenance without digging

The 42064 is particularly useful for permanently installed Maxi-Paw sprinklers. Instead of exposing the complete sprinkler and disconnecting it from the irrigation pipe, the internal mechanism can be accessed directly from above.

This saves time during routine maintenance and makes cleaning or servicing a pop-up impact sprinkler considerably easier.

Designed for Maxi-Paw and Mini-Paw

Rain Bird lists the 42064 as its dedicated Mini-Paw/Maxi-Paw wrench. Compatible sprinklers include the Rain Bird 2045A Maxi-Paw, AG-5 Maxi-Paw and LG-3 Mini-Paw.

For irrigation systems using the Rain Bird 2045A Maxi-Paw, the 42064 is therefore a useful accessory for future servicing and maintenance.

Technical data

• Manufacturer: Rain Bird
• Model: 42064
• Product type: Maintenance wrench and lifting tool
• Designed for pop-up impact sprinklers
• For lifting the sprinkler cap
• For loosening the internal assembly
• For removing the sprinkler mechanism
• Allows maintenance without removing the outer case
• Chrome-finished metal construction
• Compatible with Rain Bird 2045A Maxi-Paw
• Compatible with Rain Bird AG-5 Maxi-Paw
• Compatible with Rain Bird LG-3 Mini-Paw

Frequently asked questions about the 42064

What is the Rain Bird 42064 used for?

The 42064 is primarily used to loosen and remove the internal sprinkler assembly from compatible Maxi-Paw and Mini-Paw pop-up impact sprinkler cases.

Is the 42064 compatible with the 2045A Maxi-Paw?

Yes. Rain Bird specifically lists the 2045A Maxi-Paw as a compatible sprinkler.

Do I need to dig up the Maxi-Paw for maintenance?

No. The internal mechanism can be removed from above while the outer sprinkler case remains installed in the ground and connected to the irrigation pipe.

Is the 42064 an adjustment tool?

The 42064 is primarily a maintenance and removal wrench for Maxi-Paw and Mini-Paw sprinklers. It is different from Rain Bird's universal Rotor Tool used with conventional gear-driven rotors.

Is the wrench also compatible with Mini-Paw sprinklers?

Yes. Rain Bird lists the LG-3 Mini-Paw among the compatible sprinkler models.
