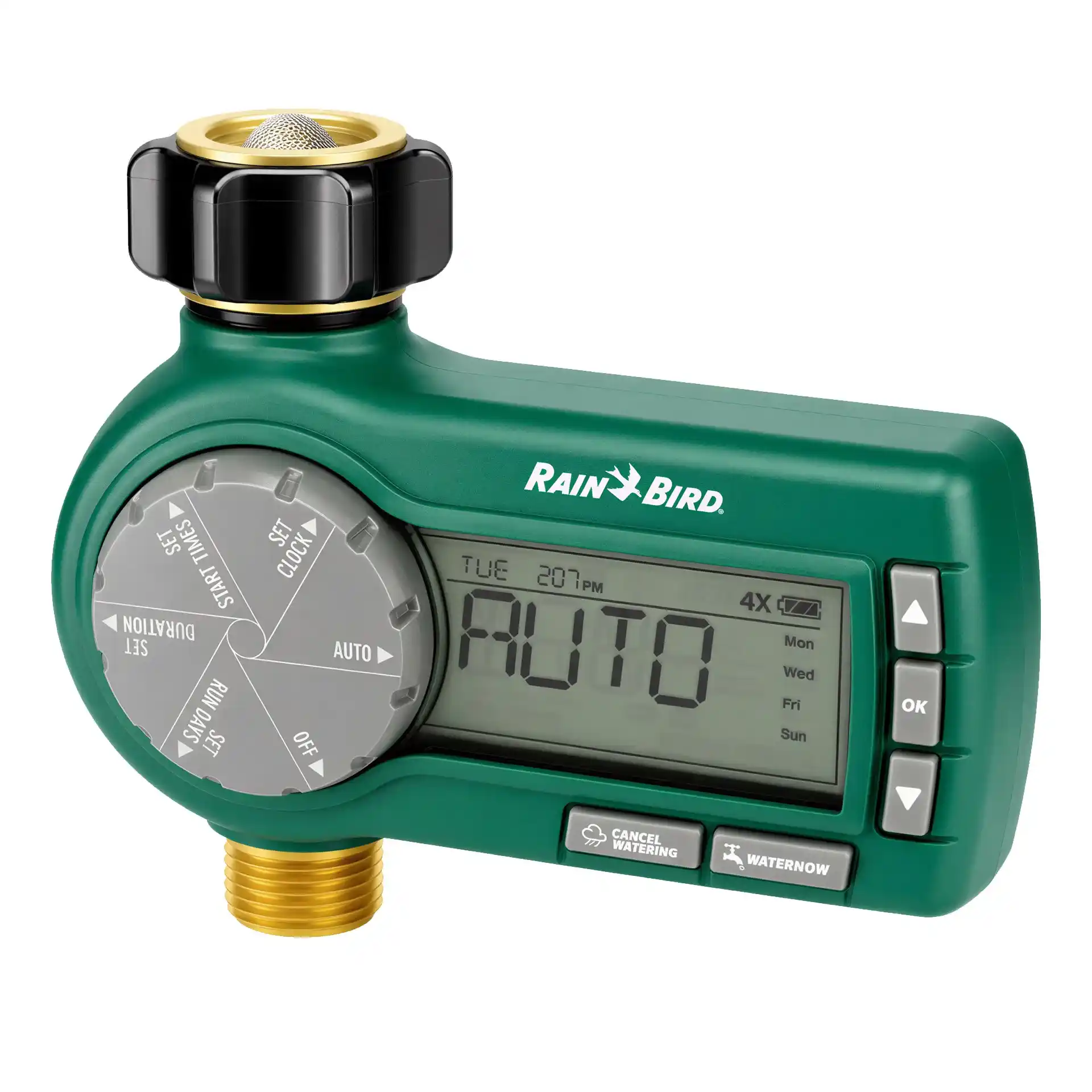

Rain Bird ESP-HT2-BSP premium digital hose-end water timer

Automatic irrigation directly from your outdoor tap

The Rain Bird ESP-HT2-BSP Premium Water Timer is a simple way to automate garden irrigation without installing a conventional irrigation controller or electrical wiring. The timer connects directly to a suitable outdoor tap and can automatically control hose-end sprinklers, soaker hoses and drip irrigation systems.

It is particularly suitable for home gardens, lawns, flower beds, raised beds, hedges and other areas supplied directly from an outdoor tap. The ESP-HT2-BSP controls one irrigation zone and automatically opens and closes the water supply according to your programmed watering schedule.

Easy to install and set up yourself

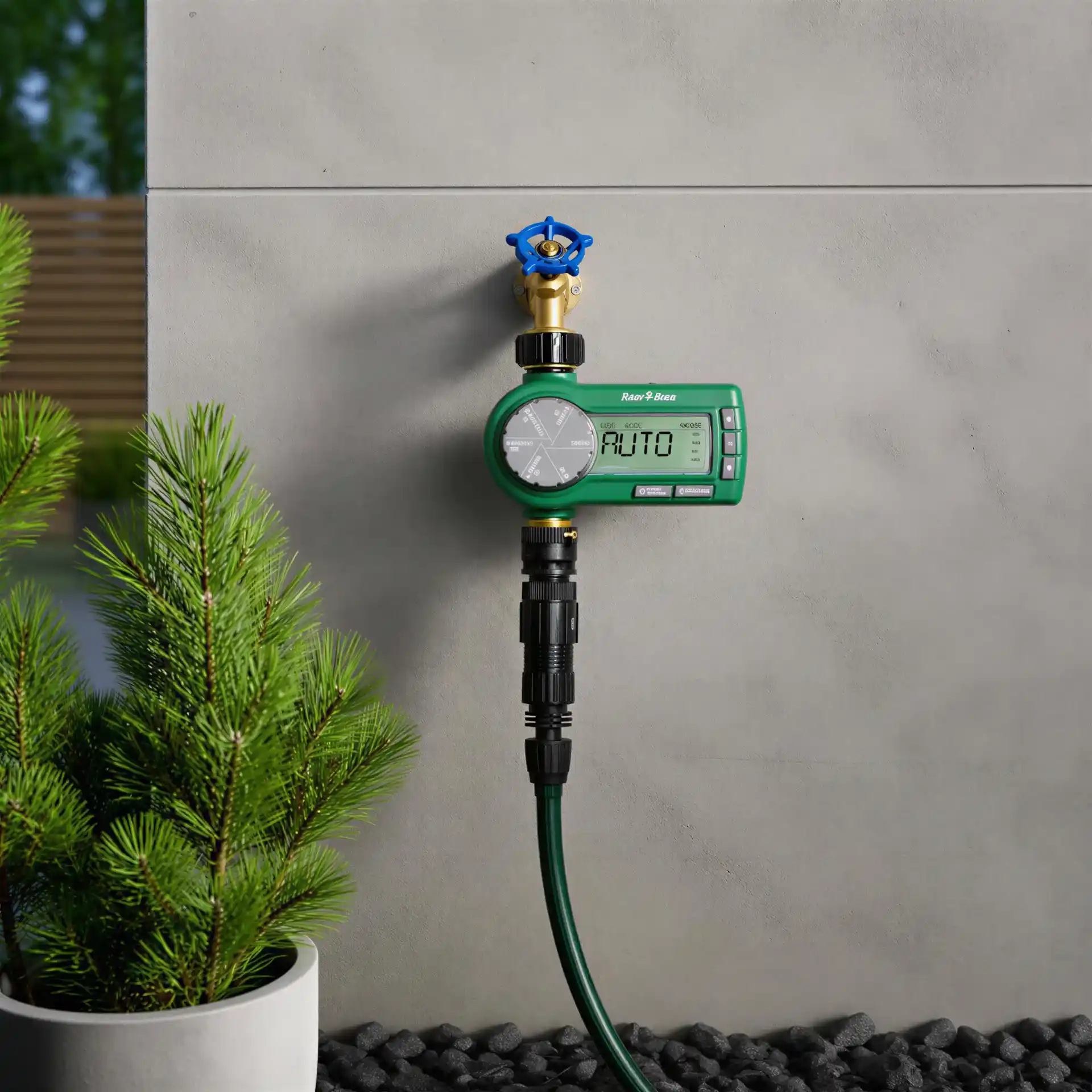

No complicated wiring or mains power connection is required. The water timer is installed directly on the outdoor tap. The BSP version features a ¾-inch female BSP inlet and a ¾-inch male BSP outlet. Your irrigation hose or irrigation system is then connected to the outlet.

Power is supplied by two standard AA alkaline batteries. This means the controller operates independently of a power socket and can be used wherever an electrical connection is unavailable. Batteries are not included.

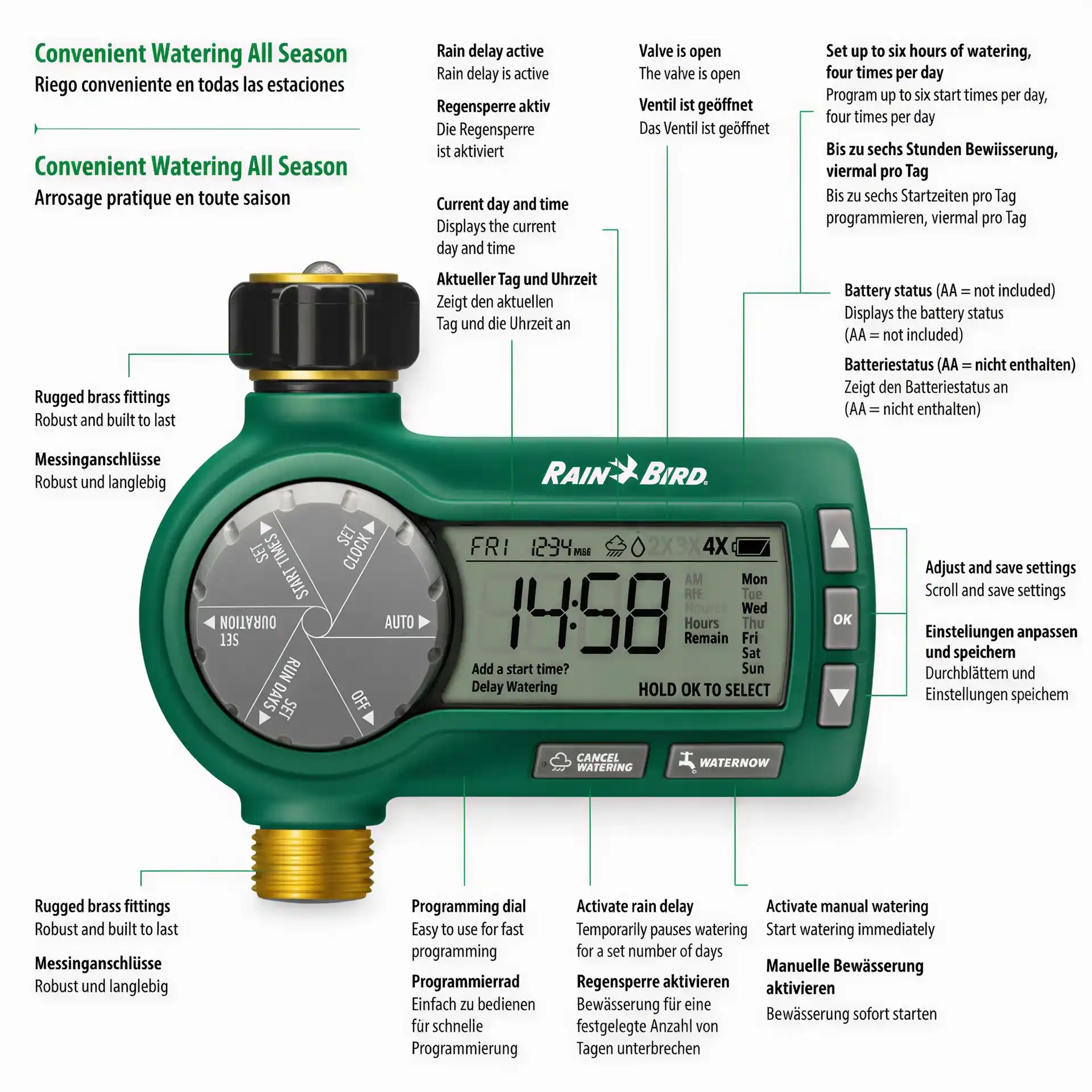

Programming is designed to be straightforward. A large programming dial, easy-to-read LCD display and clearly arranged buttons guide you through the settings. The current time, watering start times, watering duration and watering days can all be configured directly on the timer.

Flexible watering with up to four daily start times

The ESP-HT2-BSP offers seven-day programming, allowing you to select the specific days of the week on which irrigation should run automatically. Up to four start times can be scheduled per day, providing considerably more flexibility than a basic mechanical water timer.

Multiple start times are particularly useful on heavy or clay soils. Instead of applying a large amount of water in one long cycle, irrigation can be divided into several shorter cycles. This gives the water more time to soak into the soil and can help reduce surface runoff. The same approach can also be useful on sloping areas.

Watering duration can be programmed for up to six hours per cycle. This makes the timer suitable not only for conventional hose-end sprinklers but also for soaker hoses and drip irrigation systems that may require longer watering periods at lower flow rates.

Manual watering and rain delay

If you want to irrigate outside the programmed schedule, the ESP-HT2-BSP provides a convenient manual watering function. The “Water Now” button lets you start watering without changing your stored automatic schedule.

A rain delay function is also available. If sufficient rain has fallen or rain is expected, automatic irrigation can be suspended for up to 96 hours. Once the selected delay has ended, the timer automatically returns to its normal programmed schedule.

The large LCD display provides useful watering information at a glance, including the next scheduled watering cycle and the remaining time of a currently active cycle.

Durable quality with brass connections

Rain Bird equips the Premium Water Timer with durable brass connections. Both the female inlet coupling and threaded male outlet are designed to provide a strong and reliable connection. Compared with simple plastic threads, the metal fittings provide additional durability when the timer is regularly installed and removed and help reduce the risk of accidental cross-threading.

Inside the timer is a high-flow valve designed for low pressure loss. This helps maintain as much of the available water pressure and flow as possible for the connected irrigation system. The BSP version is designed for compatible BSP threaded connections commonly used in European irrigation installations.

No Wi-Fi and no app required

The Rain Bird ESP-HT2-BSP does not feature Wi-Fi and does not require a smartphone or app. All settings are made directly on the timer using the programming dial, LCD display and control buttons.

The Rain Bird 2.0 app is not used with this model. This makes the ESP-HT2-BSP particularly suitable if you want a straightforward and independent tap-mounted irrigation controller. There is no Wi-Fi network to configure, no internet connection is required and automatic irrigation runs locally according to the stored schedule.

If smartphone and Wi-Fi control are important to you, a compatible Rain Bird smart irrigation controller is a better choice. The ESP-HT2-BSP is deliberately designed to provide simple, reliable automatic watering directly from an outdoor tap.

Technical data and specifications

• Manufacturer: Rain Bird
• Model: ESP-HT2-BSP
• Product type: Premium digital hose-end water timer
• Application: Tap-connected garden irrigation
• Number of irrigation zones: 1
• Programming: 7-day schedule
• Start times: Up to 4 per day
• Watering duration: Up to 6 hours per cycle
• Manual watering: Yes
• Rain delay: Up to 96 hours
• Display: Large LCD display
• Controls: Programming dial and buttons
• Power supply: 2 x AA alkaline batteries
• Batteries included: No
• Wi-Fi: No
• Rain Bird 2.0 app: No
• Smartphone control: No
• Mains power required: No
• Inlet: ¾-inch BSP female thread
• Outlet: ¾-inch BSP male thread
• Connections: Durable brass fittings
• Operating pressure: Approx. 1 to 6 bar
• Flow rate: Approx. 162 l/h to 2.2 m³/h
• Maximum operating temperature: 43°C
• Water type: Cold water
• Installation: Directly on an outdoor tap
• Protect from freezing and remove when frost is expected
• Suitable for hose-end sprinklers, soaker hoses and drip irrigation

Frequently asked questions about the Rain Bird ESP-HT2-BSP

Can I install the ESP-HT2-BSP myself?

Yes. This is one of the main advantages of this water timer. No electrical wiring or permanently installed controller is required. Simply connect the ESP-HT2-BSP to a suitable outdoor tap and connect your irrigation hose or irrigation system to the outlet.

Does the water timer require a mains power connection?

No. The timer is powered by two AA alkaline batteries, allowing it to operate independently of a power socket.

How many irrigation zones can it control?

The ESP-HT2-BSP controls one irrigation zone or water outlet. If you need several independently controlled irrigation zones, a multi-zone controller or a conventional irrigation controller with separate irrigation valves is required.

How many times per day can irrigation start?

Up to four start times can be programmed per day. This is useful when the required amount of water needs to be divided into several shorter watering cycles.

How long can each watering cycle run?

A watering cycle can be programmed for up to six hours, making the timer suitable for both conventional sprinklers and longer-running drip or soaker hose applications.

Can I start watering manually?

Yes. The “Water Now” function lets you start manual watering without changing the stored automatic watering schedule.

What can I do when it rains?

The rain delay function allows automatic irrigation to be paused for up to 96 hours. Once the delay has expired, the ESP-HT2-BSP automatically returns to its normal programmed schedule.

Does the ESP-HT2-BSP have Wi-Fi?

No. This model does not have Wi-Fi. Programming and operation are carried out directly on the timer.

Does it work with the Rain Bird 2.0 app?

No. The ESP-HT2-BSP is not controlled through the Rain Bird 2.0 app. No smartphone, Wi-Fi network or internet connection is required.

Can I leave the timer outside during winter?

No. The timer must be protected from freezing temperatures. When frost is expected, remove it from the tap, drain it and store it in a frost-free location.
