Rain Bird PTC1 tool for pulling up spray heads

Rain Bird PTC1 spray head pull-up tool

The Rain Bird PTC1 spray head pull-up tool makes it easy to lift and hold the stem of a pop-up spray sprinkler during maintenance. It is particularly useful when replacing spray nozzles, cleaning nozzle filters or installing new irrigation nozzles. The tool prevents the sprinkler stem from retracting into the body while you are working, making routine maintenance much easier.

The specially designed tool is suitable for a wide range of pop-up spray sprinklers, including the Rain Bird 1800 series. It allows you to perform maintenance directly on an installed sprinkler without digging up or removing the entire sprinkler body. This saves time and makes it easier to maintain your garden irrigation system.

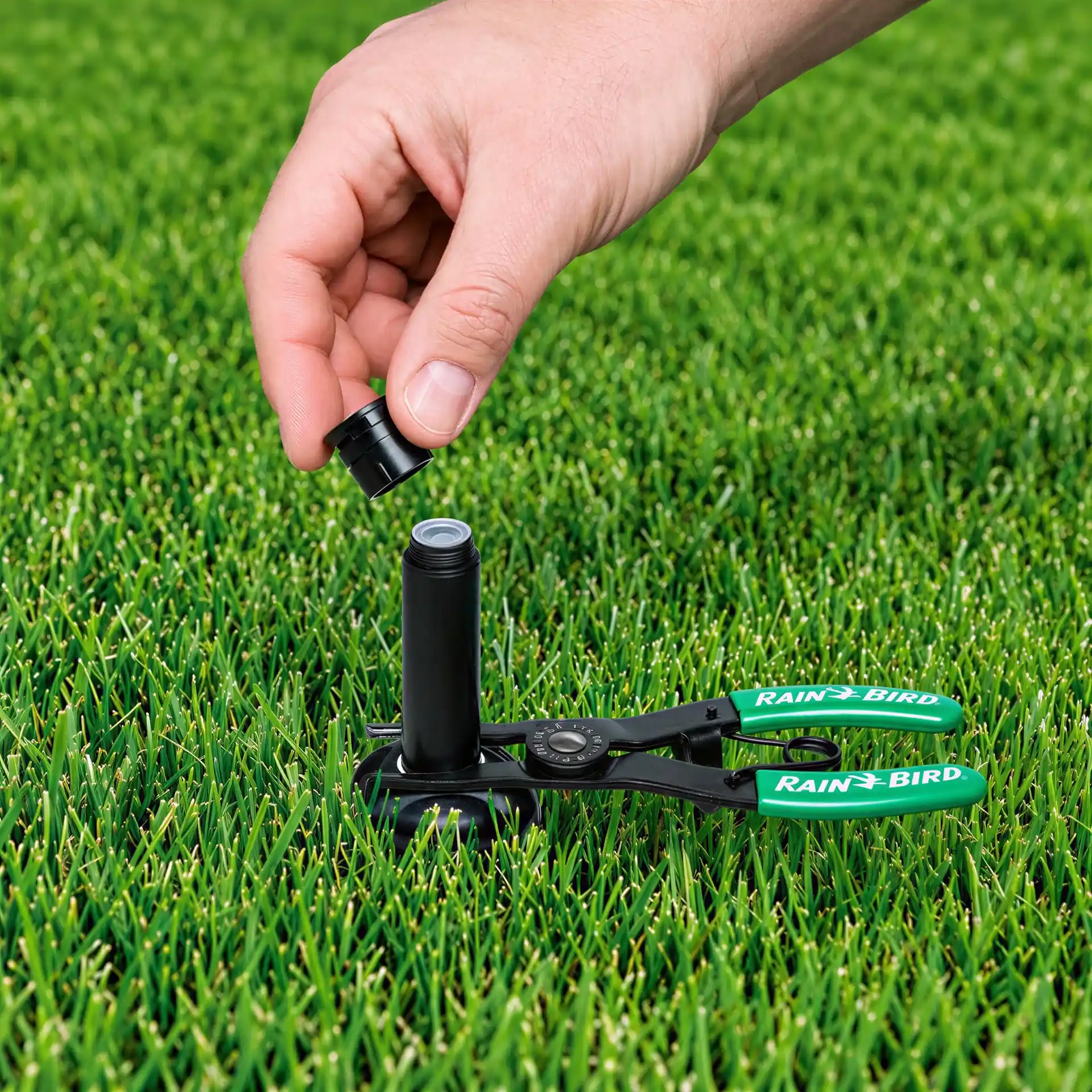

Pull up and securely hold the sprinkler stem

The Rain Bird PTC1 features specially shaped gripping tips that allow you to lift the sprinkler stem out of its housing. Once extended, the tool can be positioned around the stem to hold it in place. Its gripping mechanism prevents the internal return spring from pulling the stem back into the sprinkler body while you are working.

This leaves both hands free to unscrew an existing nozzle, clean the filter screen or install a replacement nozzle. The tool is particularly useful when working with Rain Bird VAN, HE-VAN and R-VAN nozzles. It also makes routine inspection and cleaning of pop-up spray sprinklers more convenient.

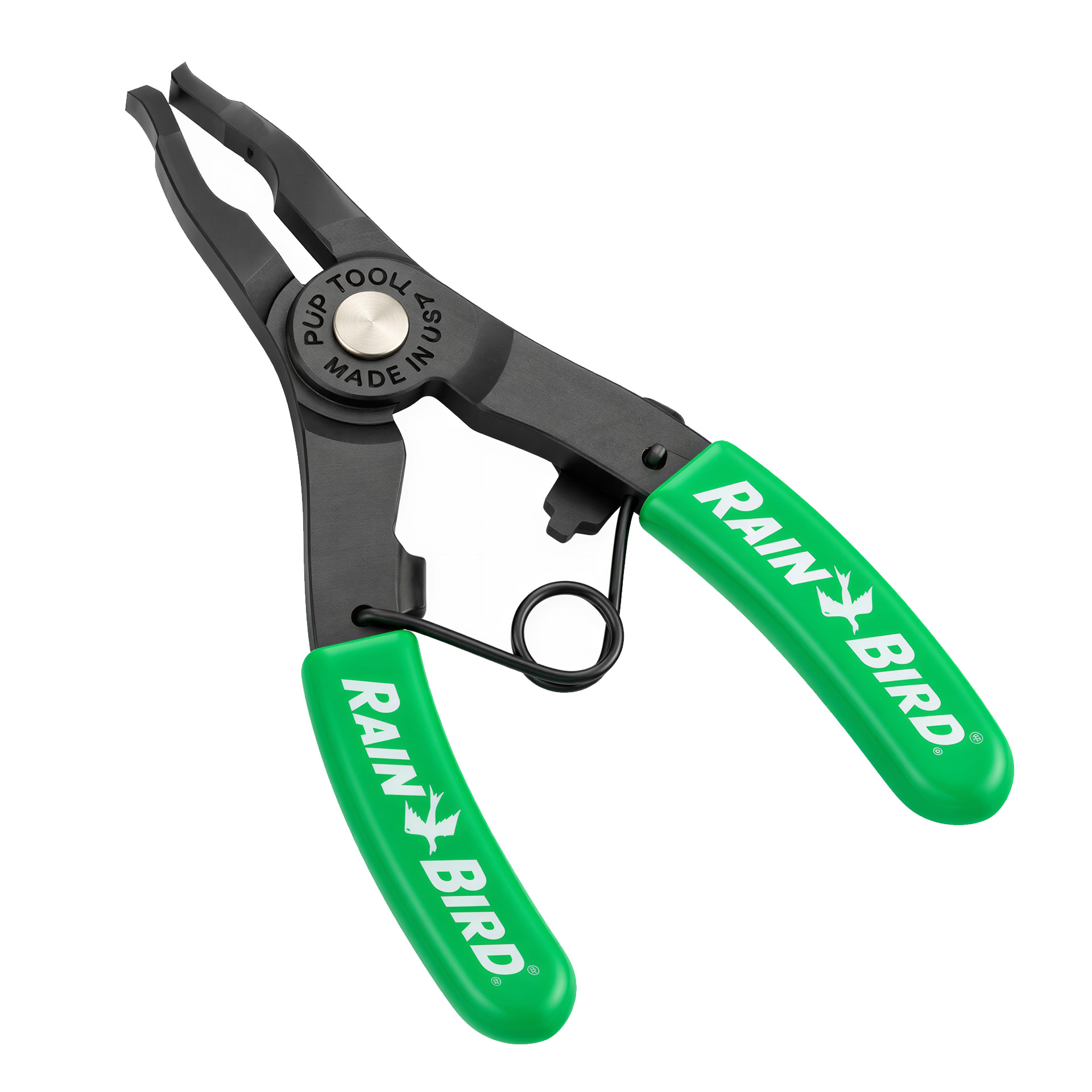

Durable steel tool with comfortable handles

The Rain Bird PTC1 is manufactured from corrosion-resistant steel and is designed for repeated use during sprinkler maintenance. Its vinyl-coated handles provide a comfortable grip and allow controlled operation. An adjustable screw makes it possible to change the jaw opening to accommodate different sprinkler stem sizes.

Its sturdy construction makes the tool suitable for homeowners as well as professional landscape maintenance teams. The compact design allows convenient storage alongside other irrigation installation and maintenance tools. It is a useful accessory for anyone who regularly services automatic irrigation systems.

Ideal for nozzle replacement and sprinkler maintenance

The Rain Bird PTC1 allows you to replace spray nozzles without removing the complete sprinkler body. This is particularly helpful when modifying the watering pattern of a lawn, such as replacing a conventional spray nozzle with a water-efficient rotary nozzle. The tool also simplifies maintenance when nozzle filters become clogged or spray nozzles need replacement.

According to Rain Bird, the PTC1 works with pop-up spray sprinklers from several manufacturers, including Rain Bird, Hunter and Toro. Compatibility depends on the stem design and dimensions. For larger gear-driven rotors, use the appropriate rotor adjustment and pull-up tool instead.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: PTC1
• Manufacturer part number: N89900
• Product type: Spray head pull-up and holding tool
• Material: Corrosion-resistant steel
• Handle: Vinyl-coated comfort grip
• Jaw opening: Adjustable
• Function: Pulls up and holds the sprinkler stem in its extended position
• Suitable for: Pop-up spray sprinklers from various manufacturers
• Example: Rain Bird 1800 series
• Applications: Nozzle replacement, filter cleaning and sprinkler maintenance
• Not intended for: Large gear-driven rotors
• Package contents: 1 Rain Bird PTC1 tool

Frequently asked questions

What is the Rain Bird PTC1 used for?

The tool is used to lift and hold the stem of a pop-up spray sprinkler, making nozzle replacement, filter cleaning and other maintenance tasks easier.

Is the PTC1 suitable for Rain Bird 1804 spray heads?

Yes. The Rain Bird PTC1 is suitable for the Rain Bird 1800 series, including the 1804 pop-up spray sprinkler.

Can I use the tool when replacing Rain Bird R-VAN nozzles?

Yes. The tool can hold the stem of a compatible pop-up spray sprinkler while you remove or replace an R-VAN rotary nozzle.

Does the tool work with Hunter spray sprinklers?

Yes. Rain Bird states that the PTC1 works with major brands of pop-up spray sprinklers, including Hunter and Toro.

Can I use the PTC1 to pull up gear-driven rotors?

The PTC1 is intended for pop-up spray sprinklers. For larger rotors such as the Rain Bird 3500 and 5000 series, use a suitable rotor pull-up and adjustment tool.

Do I need to dig up the sprinkler to replace a nozzle?

No. The PTC1 allows you to pull up and hold the stem while the sprinkler remains installed in the ground. Nozzle replacement can normally be completed without excavation.

Can the tool hold different sprinkler stem sizes?

Yes. The jaw opening can be adjusted using the screw on the handle. Actual compatibility depends on the shape and diameter of the sprinkler stem.
