Rain Bird EMT-6X 6-outlet manifold for micro tubing - ½-inch female thread

Rain Bird EMT-6X manifold for micro irrigation

The Rain Bird EMT-6X manifold allows you to connect up to six micro tubing lines to a single water supply. This practical six-outlet distributor is ideal for drip irrigation in flower beds, perennial borders, shrub plantings and containers. Instead of installing a separate supply line for every plant, you can distribute water from one central connection to several irrigation points.

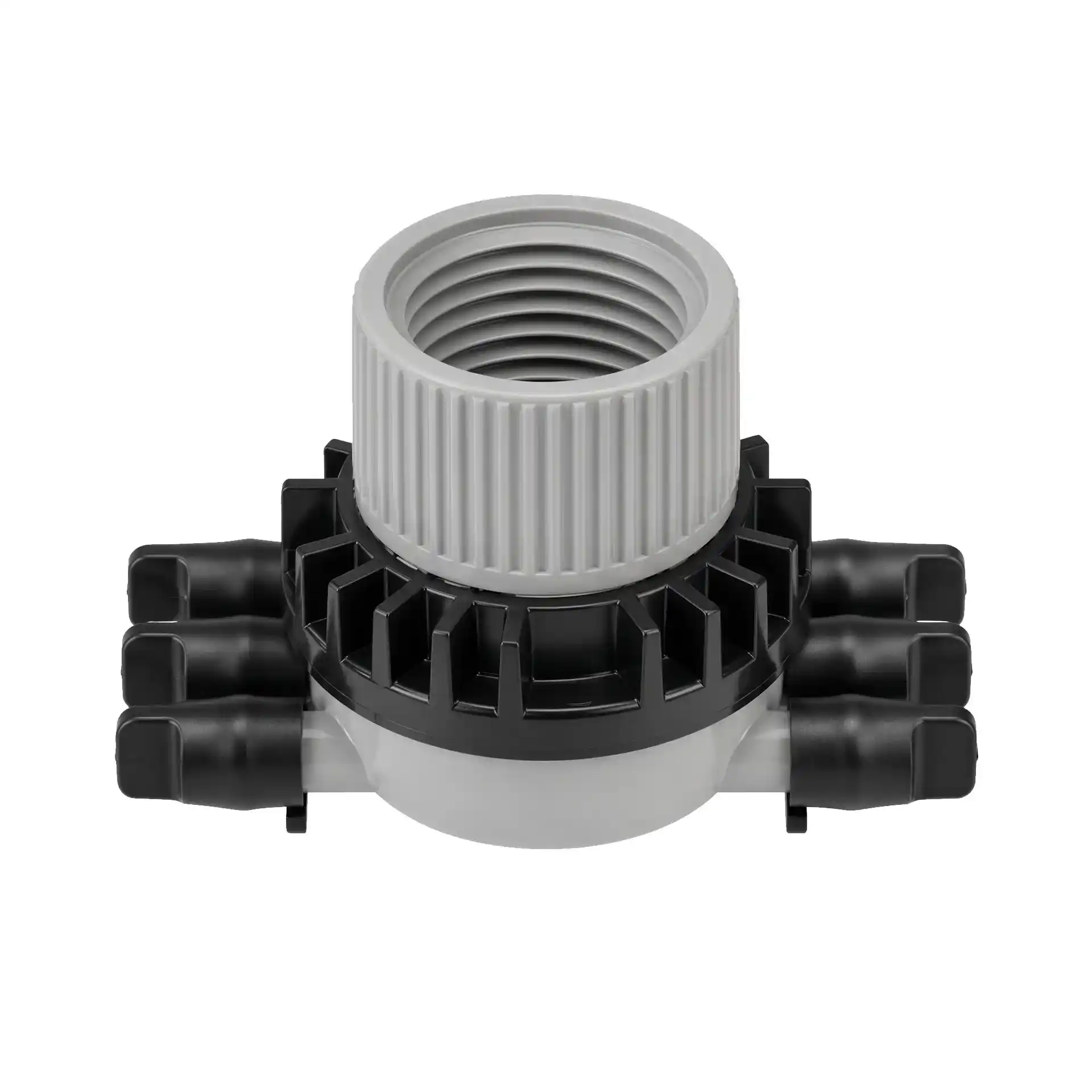

The manifold features a 1/2-inch female threaded inlet and six barbed outlets for 1/4-inch micro tubing. This provides a convenient way to create an organised micro irrigation system with individual tubing lines extending to different plants. It is particularly useful for densely planted beds and groups of containers where several watering points are required.

Six outlets for flexible tubing connections

The six outlets are designed for compatible 1/4-inch distribution tubing, approximately 6 mm in nominal size. Rain Bird specifically recommends XQ distribution tubing. Individual lines can be connected to drippers, micro sprays, micro bubblers and other suitable irrigation devices positioned throughout the planting area.

Each outlet is fitted with a removable plastic cap, allowing you to use only the connections you need. Simply remove the caps from the required outlets and push compatible tubing onto the barbed fittings. Unused outlets remain closed. This makes it easy to expand your irrigation system gradually or adapt the layout as your planting arrangement changes.

Free-flow outlets for drip irrigation devices

The Rain Bird EMT-6X uses free-flowing outlets without built-in emitters. Water delivery is therefore controlled by suitable drippers, pressure-compensating devices or micro sprays connected downstream. This allows you to select irrigation devices according to the watering requirements of different plants.

The currently documented EMT-6XERI version operates at pressures between 1.0 and 3.5 bar. Since the manifold does not contain an integrated pressure regulator, it should be supplied by an appropriately pressure-regulated irrigation system. Rain Bird also specifies filtration of 150 mesh, equivalent to 100 microns. Suitable filtration helps protect downstream emitters and micro sprays from clogging.

Easy installation with a 1/2-inch female inlet

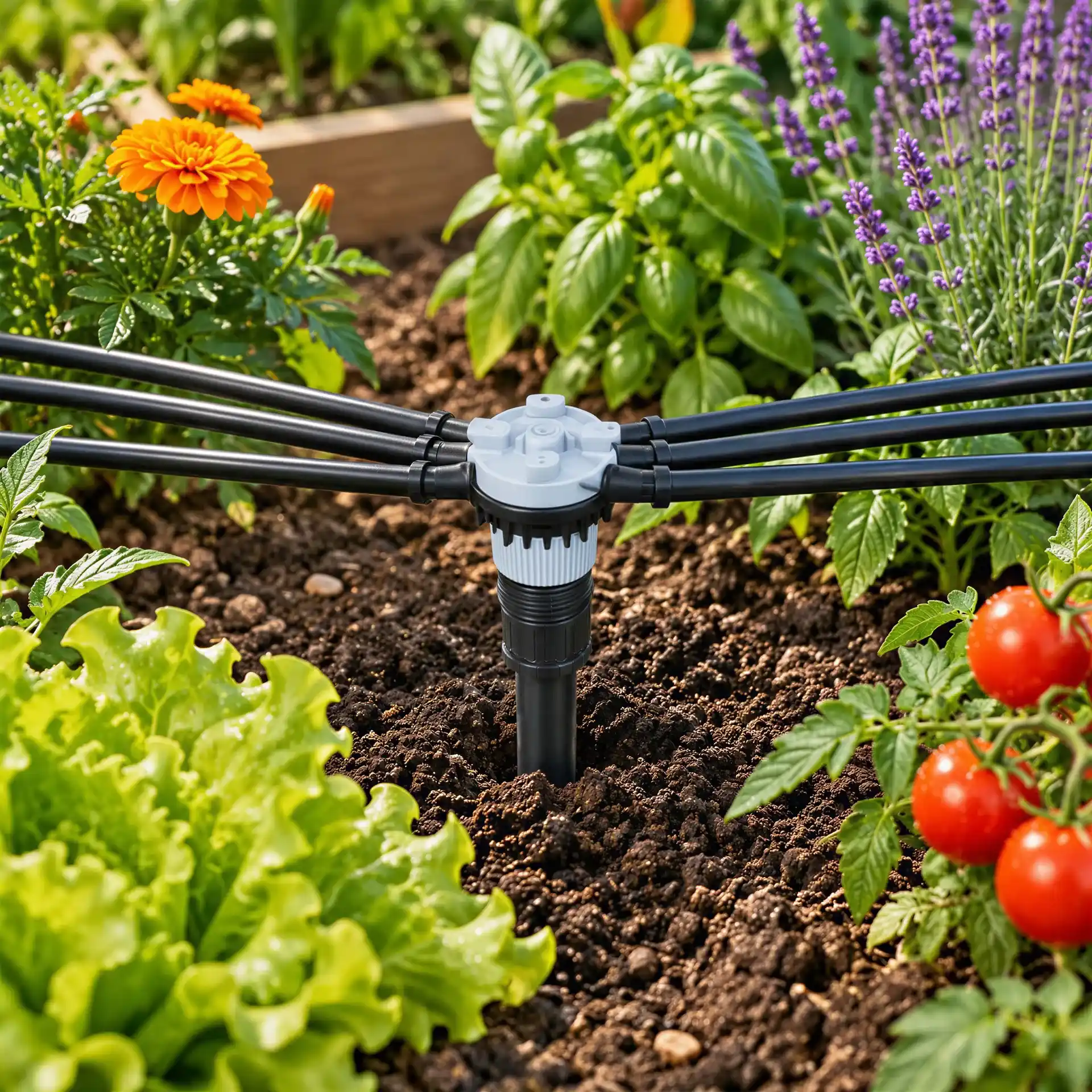

The manifold is installed by threading its 1/2-inch female inlet onto a compatible male-threaded riser or fitting. Once connected, the required outlet caps can be removed and micro tubing attached to the barbed connections. Individual tubing lines can then be routed towards plants, containers or designated watering points and secured with suitable tubing stakes.

The manifold is suitable for new micro irrigation installations and extensions to existing systems. It can be combined with Rain Bird XQ distribution tubing, Xeri-Bug emitters, PC Modules, Xeri-Pop, Xeri-Spray and Xeri-Bubbler components. When planning your installation, check tubing compatibility, available operating pressure and the required water flow for each irrigation device.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model designation: EMT-6X
• Current manufacturer designation: EMT-6XERI / EMT6XERI
• Manufacturer SKU for the current US version: X57000
• Product type: Six-outlet micro irrigation manifold
• Water inlet: 1/2-inch female pipe thread
• Number of outlets: 6
• Outlet connections: 1/4-inch barbed fittings, approximately 6 mm
• Recommended tubing: Rain Bird XQ distribution tubing
• Operating pressure for the current version: 1.0 to 3.5 bar
• Required filtration: 150 mesh / 100 microns
• Flow regulation: Not integrated
• Pressure regulation: Not integrated
• Outlet closures: Removable plastic caps
• Compatible irrigation devices: Xeri-Bug emitters, PC Modules, Xeri-Pop, Xeri-Spray and Xeri-Bubbler
• Applications: Drip irrigation, micro irrigation, planting beds and containers
• Note: Detailed operating specifications refer to the documented EMT-6XERI version

Frequently asked questions about the Rain Bird EMT-6X

How many micro tubing lines can I connect?

The manifold has six outlets, allowing up to six compatible tubing lines to distribute water from one central supply connection.

Which tubing is compatible?

The outlets are designed for 1/4-inch distribution tubing. Rain Bird specifically recommends XQ tubing. Check the actual internal dimensions before using tubing from other manufacturers.

Can I use fewer than six outlets?

Yes. Each outlet has a removable cap, so unused connections can remain closed.

Does the manifold contain built-in emitters?

No. The manifold has six unrestricted outlets. Water flow must be controlled using suitable emitters or other irrigation devices connected downstream.

Do I need a pressure regulator?

The manifold does not include a pressure regulator. The current EMT-6XERI version requires a pressure-regulated supply operating within the specified range of 1.0 to 3.5 bar.

How is the manifold installed?

Thread the 1/2-inch female inlet onto a compatible male-threaded riser or fitting, then connect suitable micro tubing to the required barbed outlets.

What is the difference between EMT-6X and EMT-6XERI?

EMT-6X appears in older Rain Bird documentation, while current product information identifies the six-outlet manifold as EMT-6XERI. Exact compatibility between historical and current versions should be confirmed against the supplied product.
