Rain Bird TSJ12 swing joint 30 cm sprinkler connection with 2 x 1-inch male threads

Rain Bird TSJ swing joint for sprinkler connections

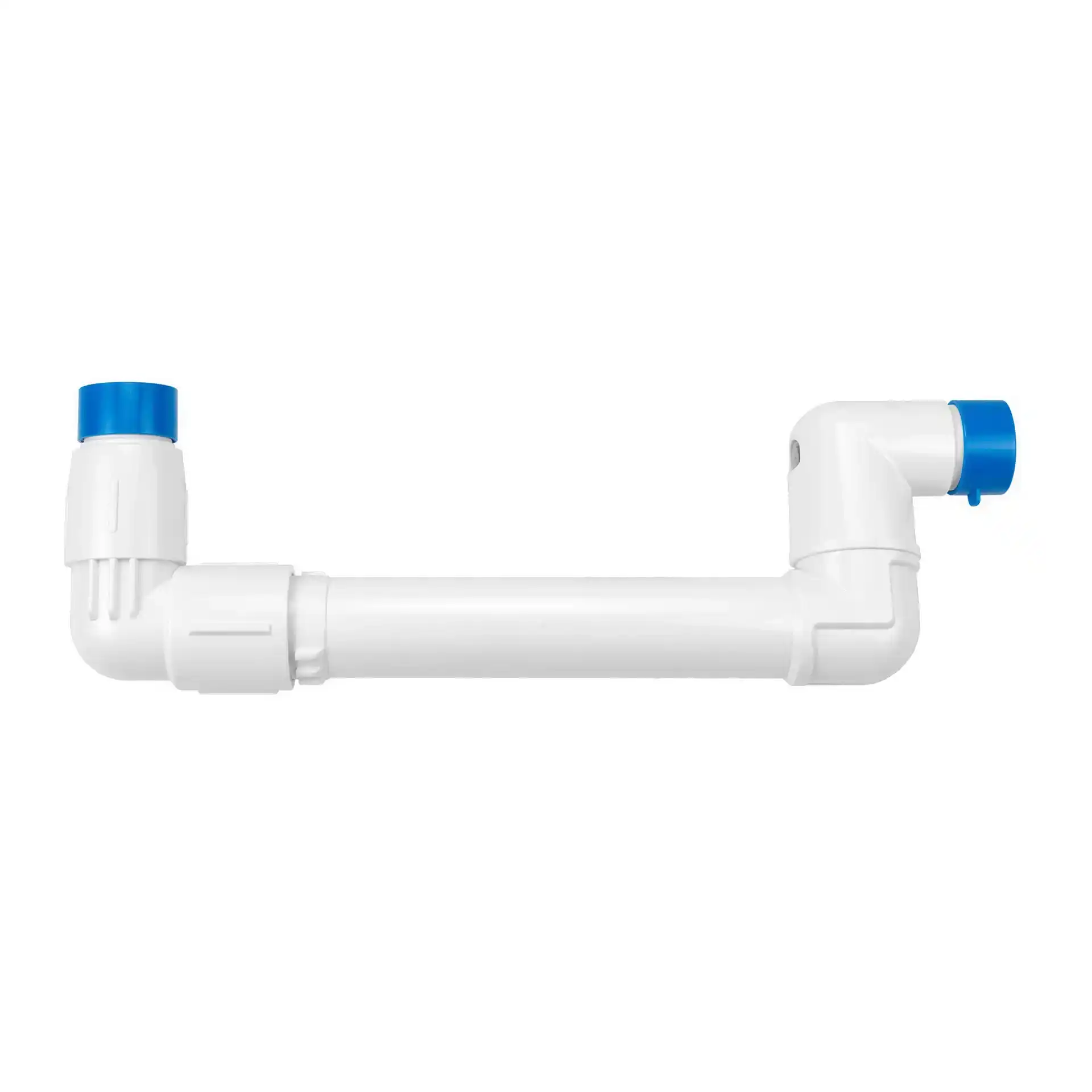

The Rain Bird TSJ swing joint with a nominal length of 30 cm and two 1-inch male threaded connections provides a flexible and durable connection between an irrigation pipe and a pop-up rotor. Its articulated design makes it easier to position the sprinkler at the correct installation height and align it with the surrounding lawn surface. This helps simplify installation and adjustment in underground irrigation systems.

The preassembled swing joint is particularly suitable for larger gear-driven rotors and quick-coupling valves with compatible 1-inch connections. Its movable joints reduce the direct transfer of mechanical loads to rigid pipework, helping protect the sprinkler connection when exposed to ground movement or pressure from maintenance equipment.

Flexible sprinkler installation with articulated joints

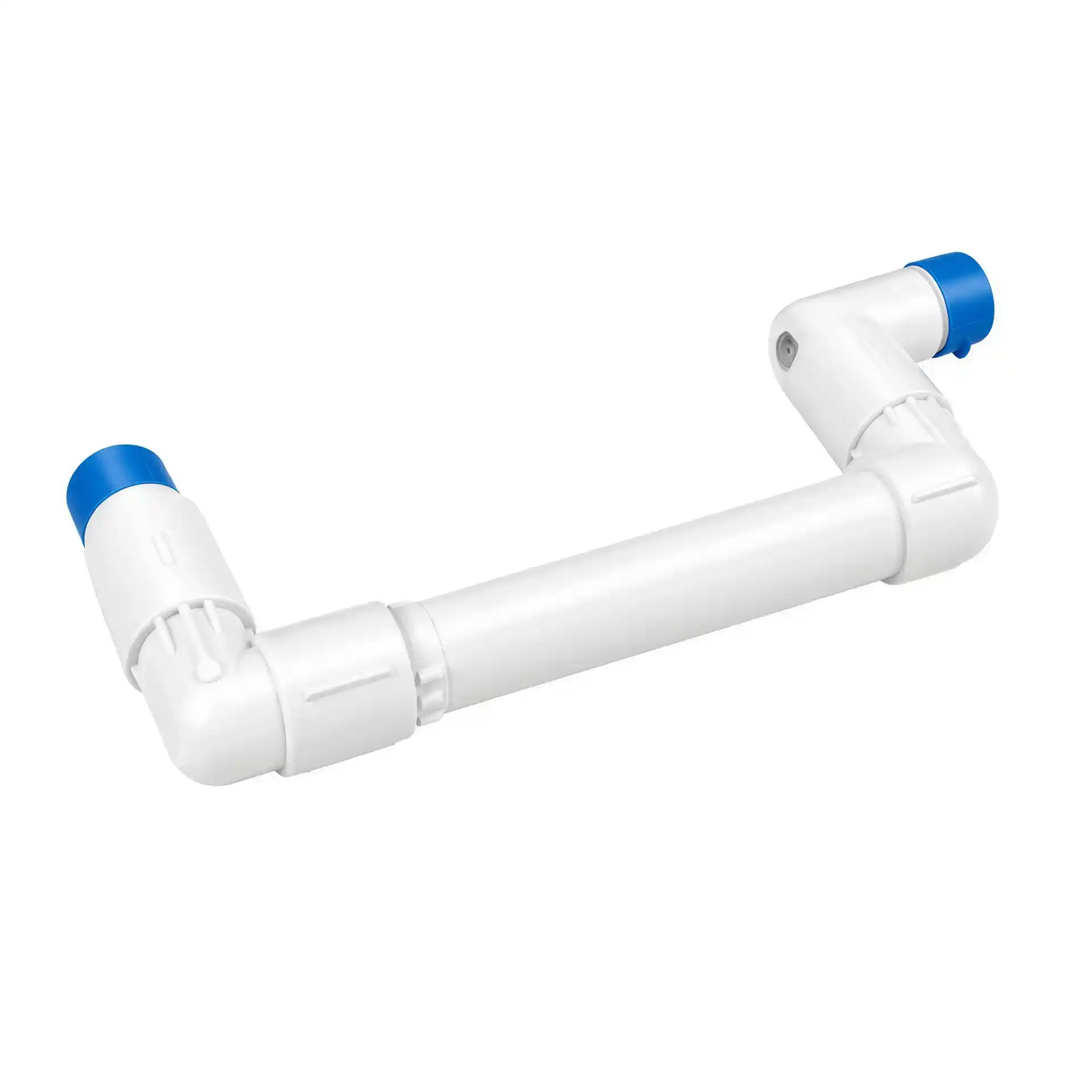

The Rain Bird TSJ-12 features adjustable swivel connections that allow the sprinkler to be positioned accurately during installation. With an actual length of 30.5 cm, equivalent to 12 inches, it provides flexibility when adjusting the position and height of a rotor. The preassembled construction saves installation time compared with assembling a similar connection from individual pipes and fittings.

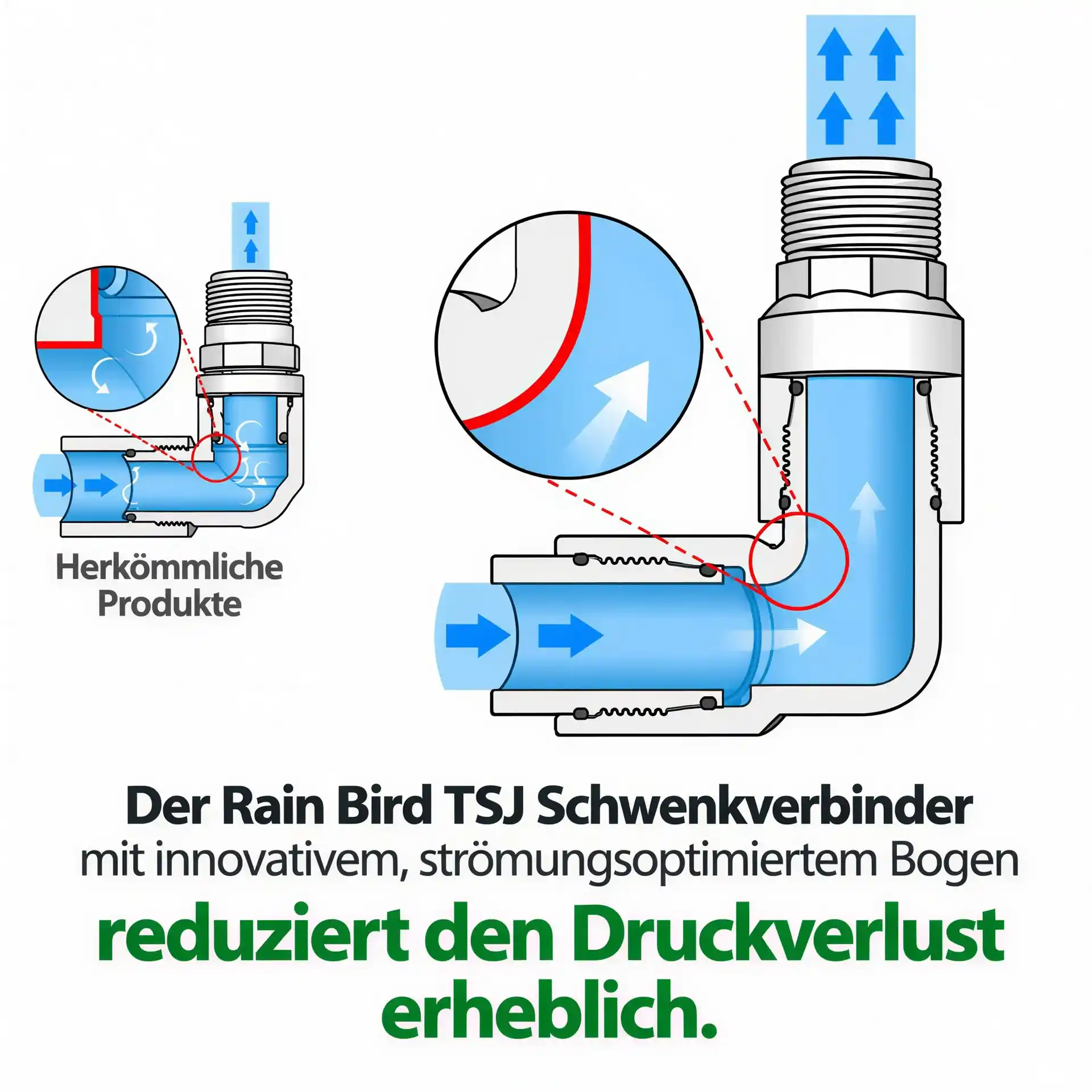

The specially shaped swept elbows promote efficient water flow through the swing joint. Rain Bird specifies a pressure loss of approximately 0.1 bar at a flow rate of 1.1 litres per second and 0.2 bar at 1.5 litres per second. These hydraulic characteristics make the TSJ-12 suitable for appropriately sized irrigation systems using larger rotors.

Durable construction for underground irrigation

The Rain Bird TSJ swing joint is manufactured from rigid PVC designed for demanding irrigation applications. Its robust articulated construction helps absorb mechanical stress that could otherwise affect rigid sprinkler connections. This is particularly useful in landscaped areas where sprinklers may be exposed to movement or occasional pressure from equipment operating above ground.

Double O-ring seals provide reliable sealing at the swivel joints and help prevent leaks. Rain Bird specifies a pressure rating of up to 21.7 bar at 22.8°C for the swing joint. The permissible operating pressure of the complete irrigation system must also take account of the limits of the sprinkler, fittings and connected pipework.

Two 1-inch male threaded connections

The Rain Bird TSJ-12 is equipped with 1-inch male NPT threads at both the inlet and outlet. One end connects to a compatible fitting on the irrigation supply pipe, while the other connects to a sprinkler or quick-coupling valve. The articulated joints allow the sprinkler position to be adjusted after the connection has been assembled.

When installing the swing joint, make sure the mating female threads are compatible with the NPT thread profile. Many European irrigation fittings use BSP threads, which have different specifications. Check the connection requirements and use suitable adapters where necessary. Once installed, pressurize the system and inspect the connections for leaks before completing the sprinkler installation.

Technical specifications and dimensions

• Manufacturer: Rain Bird
• Model: TSJ-12 / TSJ12
• Manufacturer SKU: A66705 (US store)
• Product type: Articulated sprinkler swing joint
• Nominal length: 30 cm
• Actual length: 30.5 cm / 12 inches
• Inlet connection: 1-inch male NPT
• Outlet connection: 1-inch male NPT
• Thread designation: 26/34
• Material: Rigid PVC
• Construction: Preassembled articulated joints
• Sealing: Double O-ring seals
• Pressure rating: 21.7 bar at 22.8°C
• Pressure loss: 0.1 bar at 1.1 l/s
• Pressure loss: 0.2 bar at 1.5 l/s
• Pressure regulation: None
• Applications: Gear-driven rotors and quick-coupling valves
• Included: One preassembled swing joint

Frequently asked questions

What is a Rain Bird TSJ swing joint used for?

A swing joint connects a pop-up rotor or quick-coupling valve to an irrigation pipe. Its articulated joints make it easier to position the sprinkler at the correct height and help reduce mechanical stress on the connection.

How long is the Rain Bird TSJ-12?

The swing joint measures 30.5 cm, equivalent to 12 inches. The product title uses the rounded nominal length of 30 cm.

What connections does the TSJ-12 have?

The Rain Bird TSJ-12 features two 1-inch male NPT threaded connections, one at each end.

Is this swing joint suitable for Rain Bird rotors?

Yes. It is suitable for rotors with compatible 1-inch threaded connections. Check the sprinkler inlet size and thread specification before installation.

Can I connect the swing joint to European 1-inch fittings?

The TSJ-12 uses NPT threads, while many European fittings use BSP threads. These thread standards are different, so compatibility must be checked and an appropriate adapter used where necessary.

Does the Rain Bird TSJ-12 regulate water pressure?

No. The TSJ-12 is a flexible sprinkler connection without an integrated pressure regulator. Rain Bird offers the TSJ-100-PRS for applications requiring pressure regulation.

What are the advantages of a swing joint over a rigid connection?

Its articulated construction makes sprinkler alignment easier and helps absorb mechanical loads that could otherwise damage rigid pipe connections.
